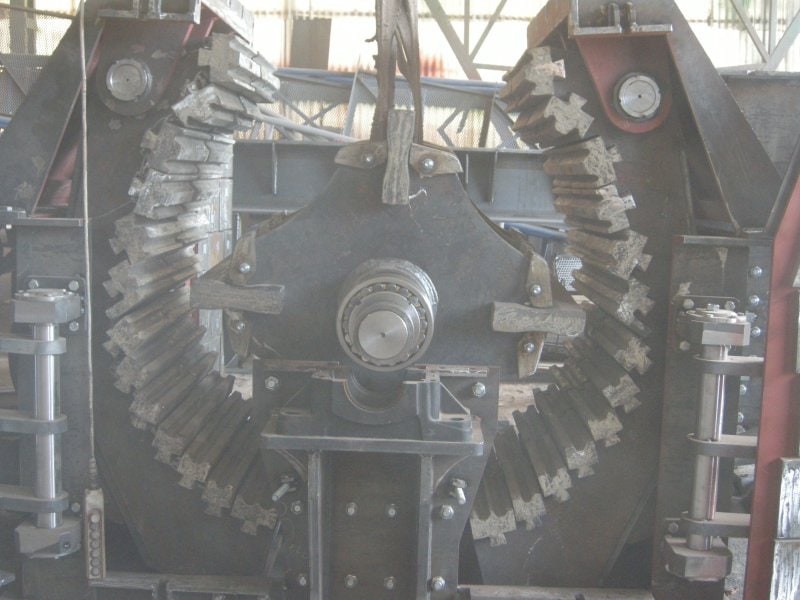

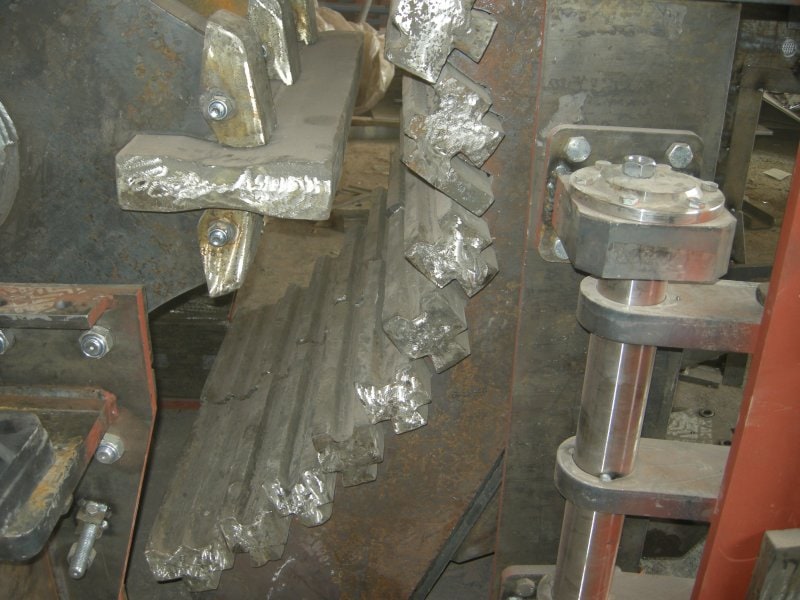

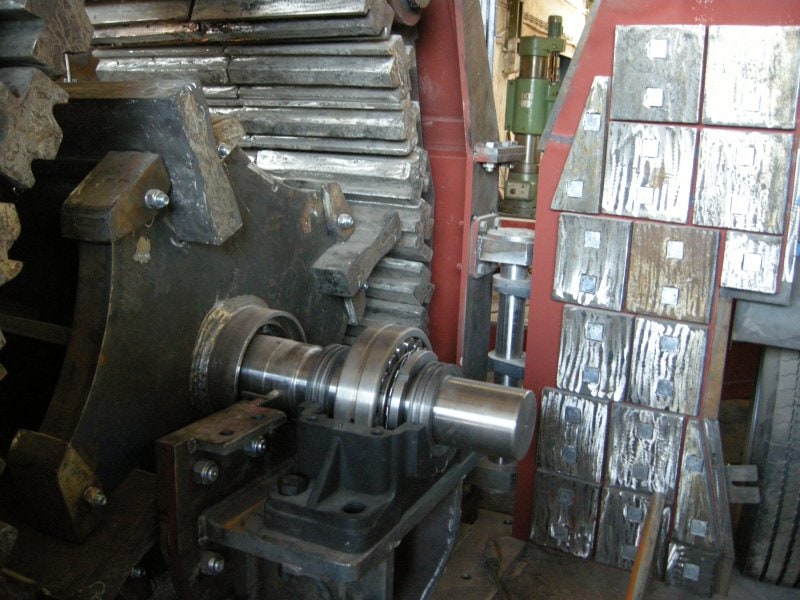

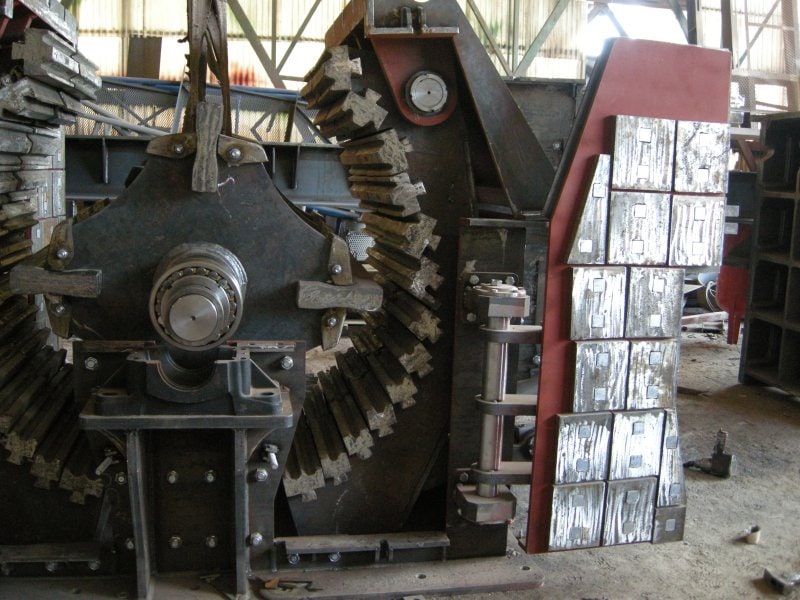

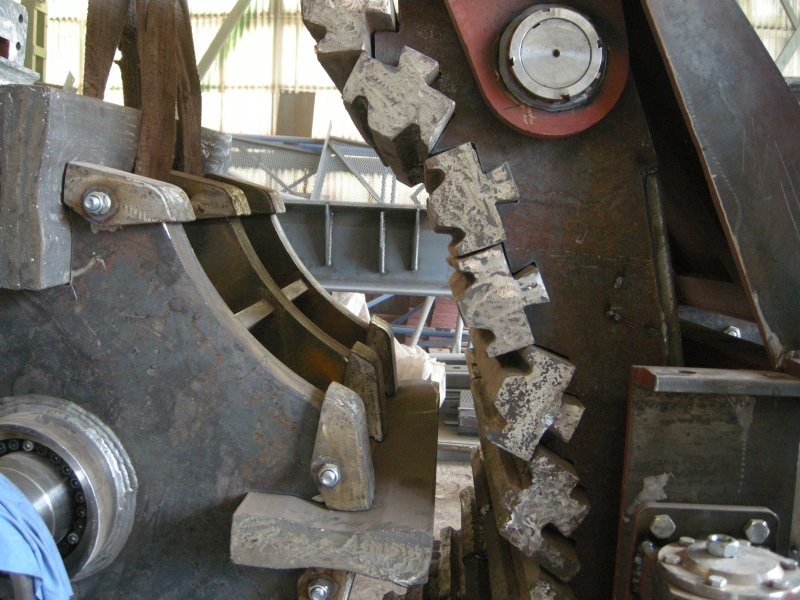

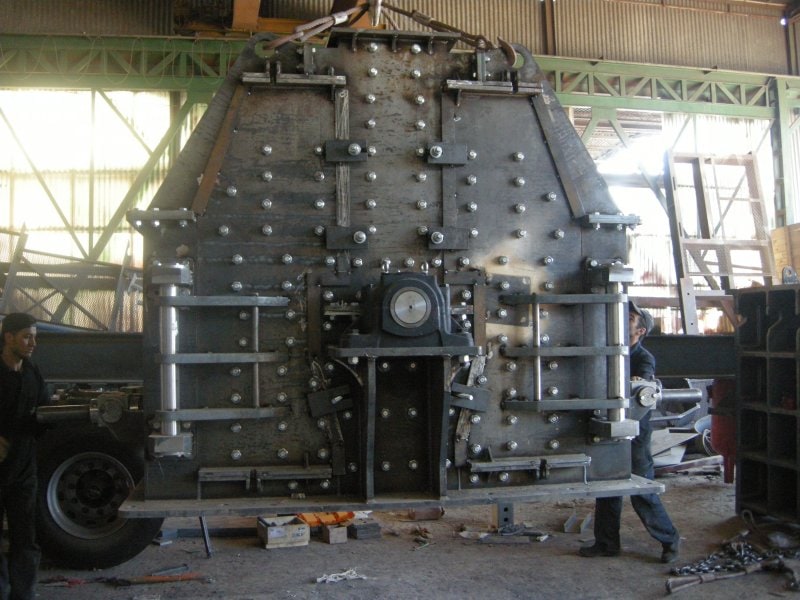

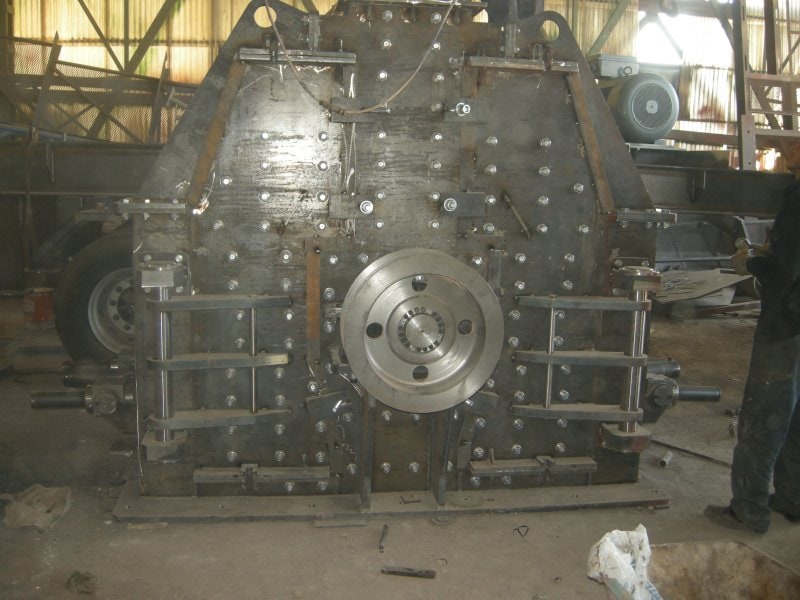

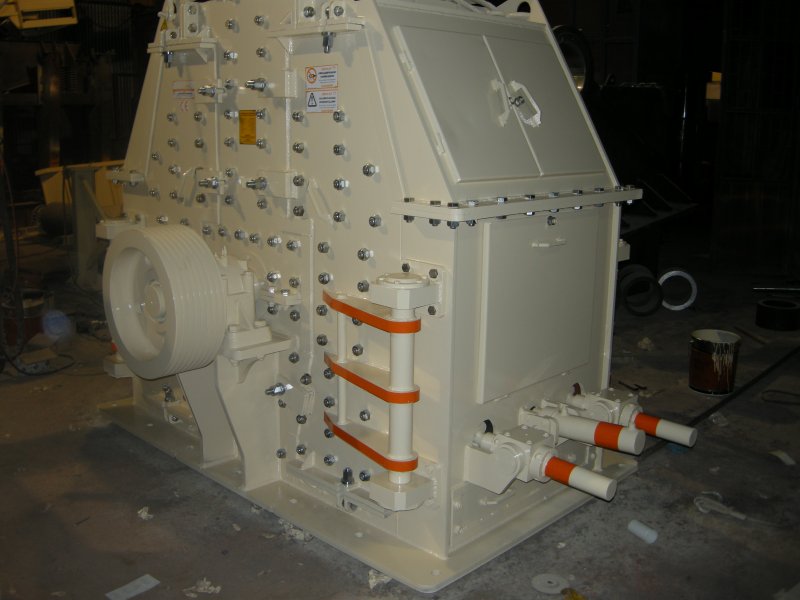

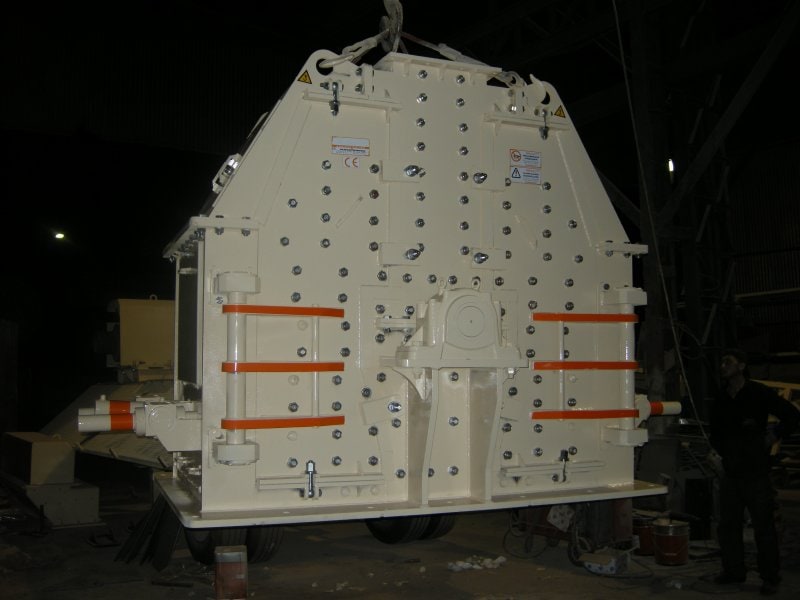

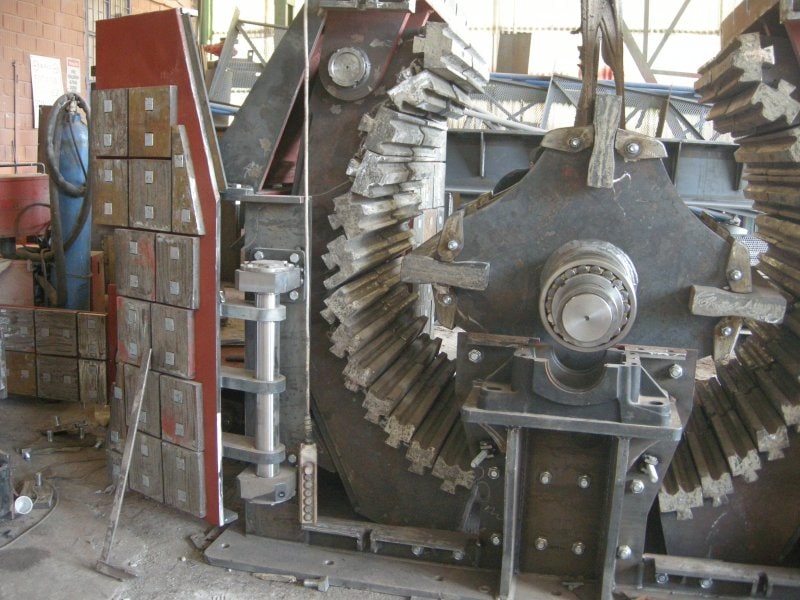

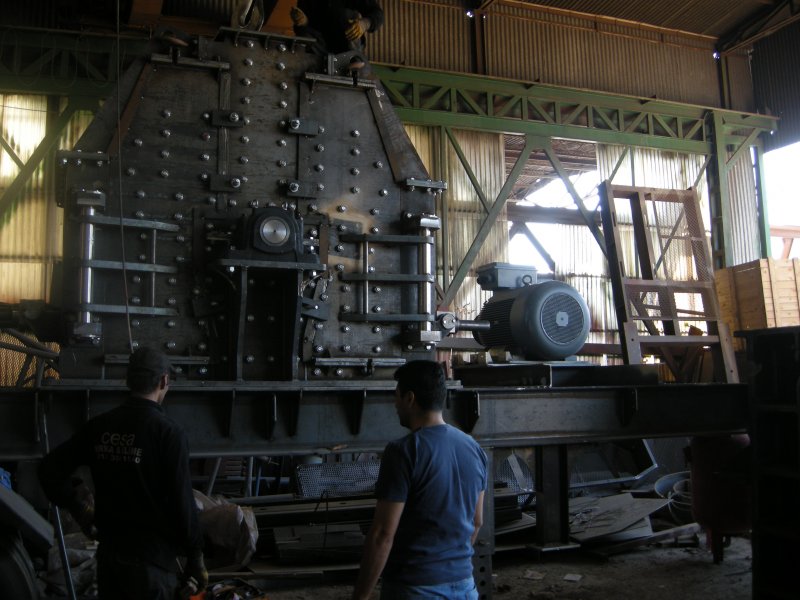

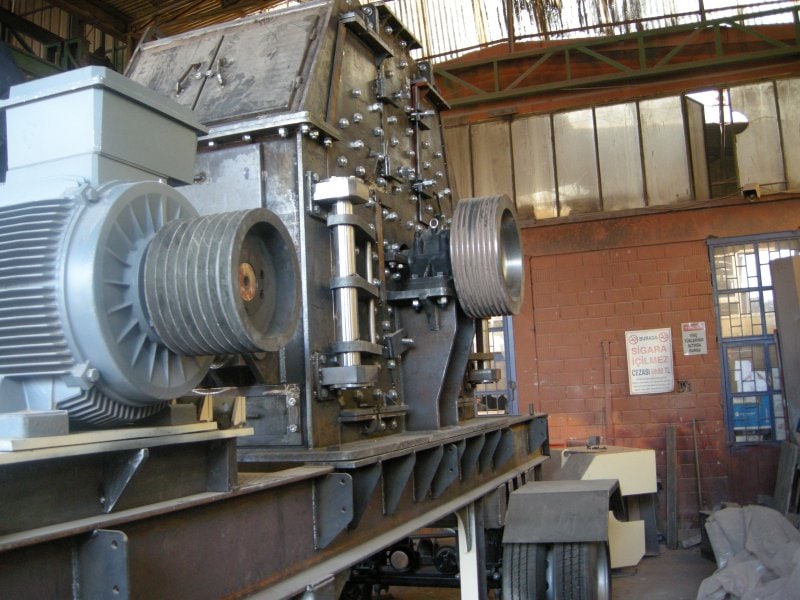

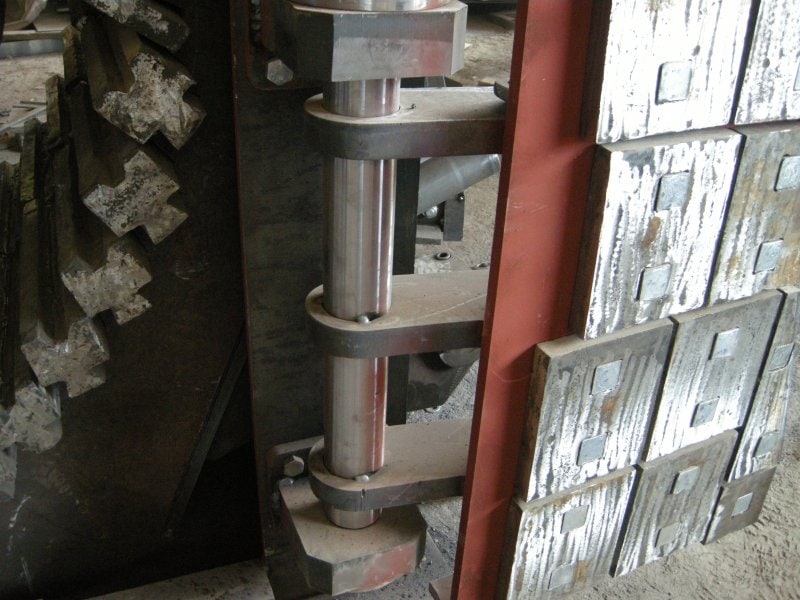

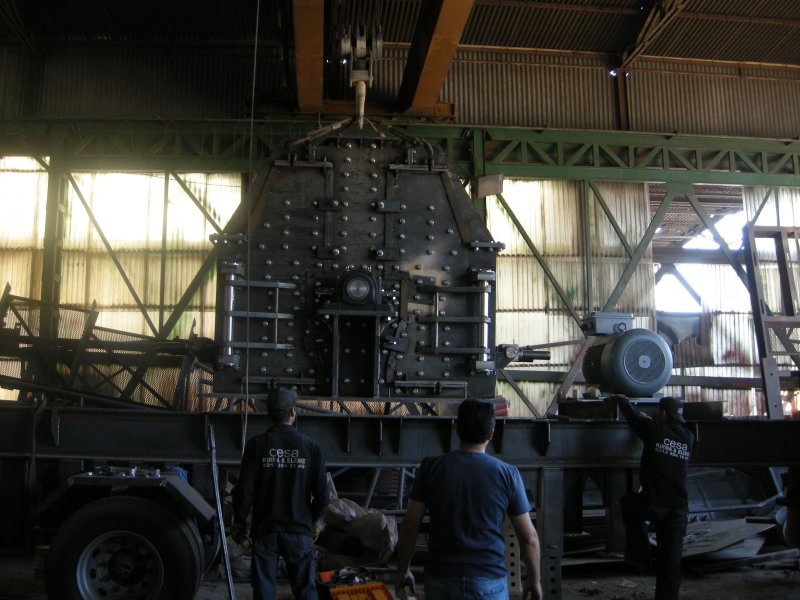

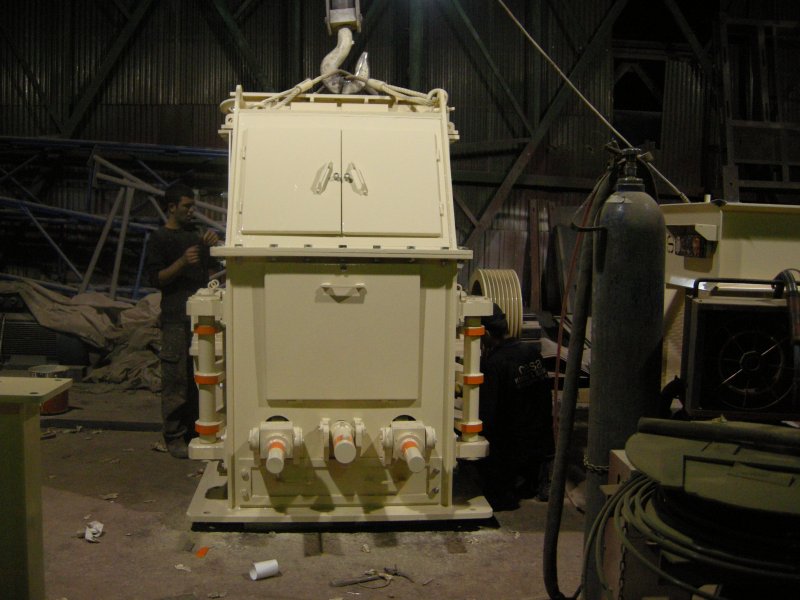

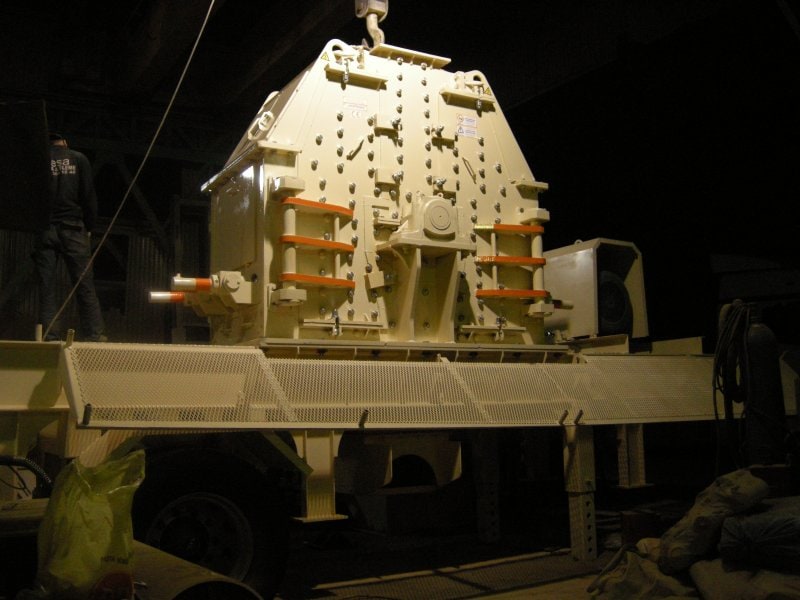

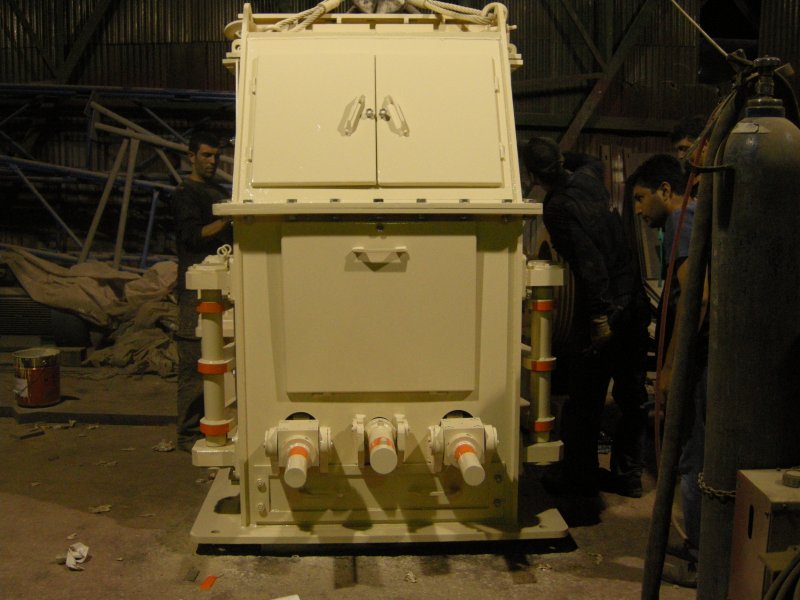

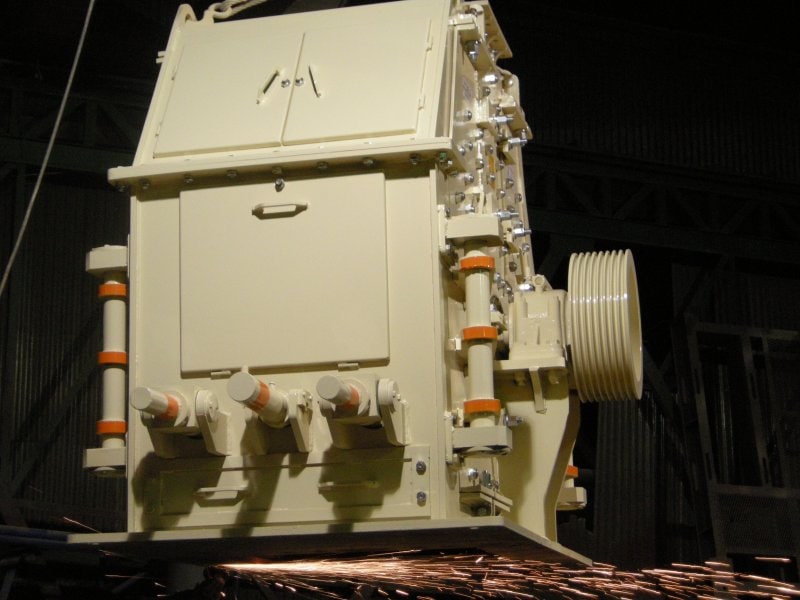

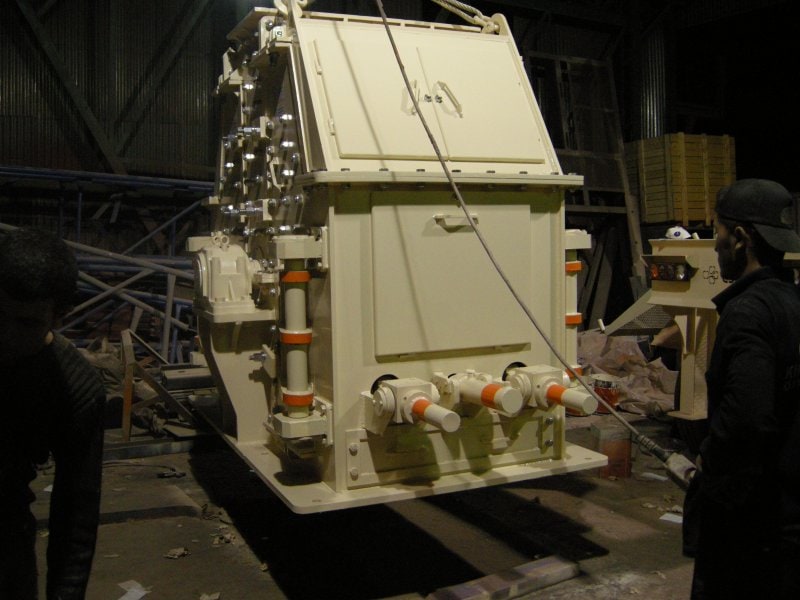

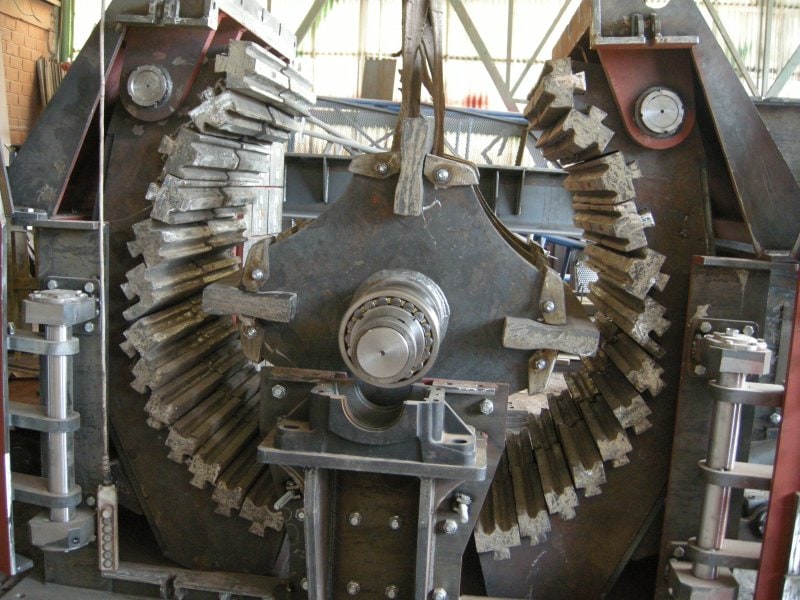

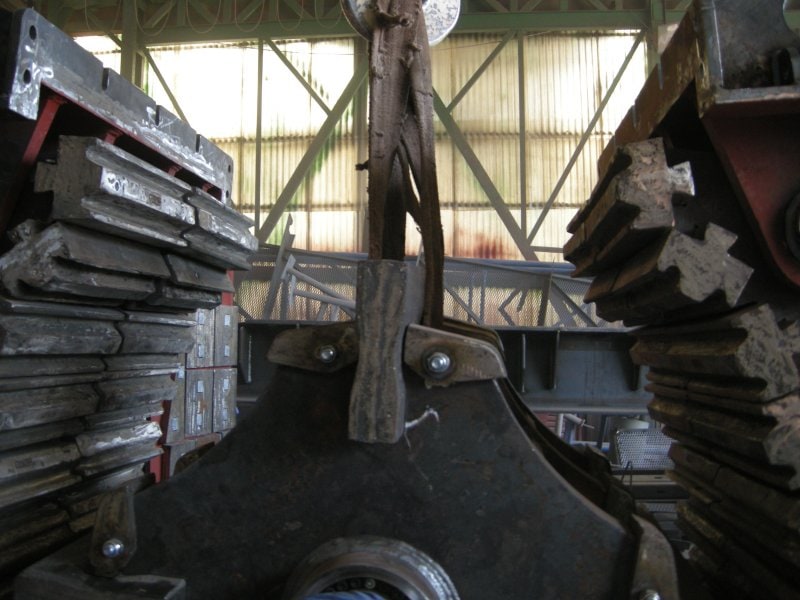

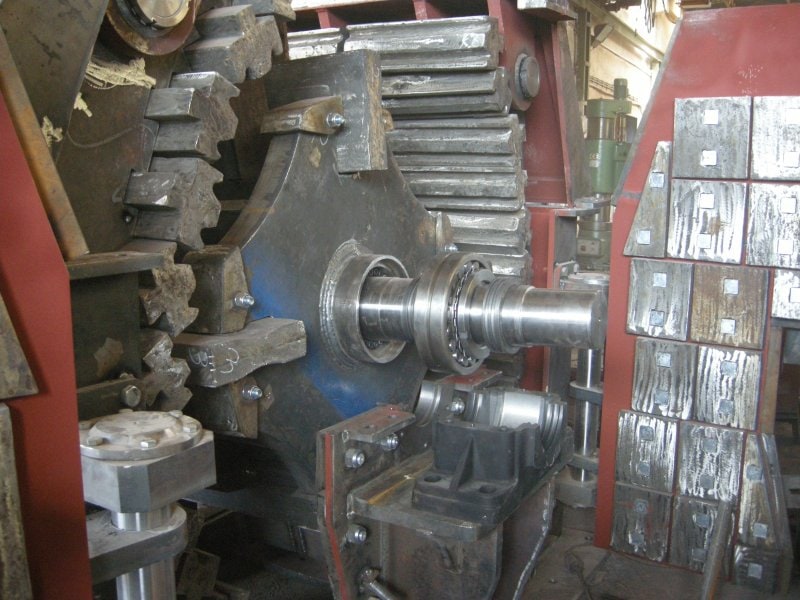

Tertiary crushers are designed to function as secondary crushers, efficiently reducing medium-hard materials to produce fine sand (0-5 mm). These crushers use a high-speed, double-sided rotating rotor to crush material by impacting it against a pendulum, allowing for adjustable output sizes through a variable outlet opening. Known for their ability to produce large quantities of sand and granular materials, tertiary crushers are perfect for operations requiring high sand production.
Tertiary crushers are used to reduce stone sizes ranging from 200 to 700 mm down to the final stage of 7 to 15 mm, making them ideal for construction applications. After primary and secondary crushing, tertiary crushers handle the final reduction and shaping, producing aggregates suitable for various construction processes.

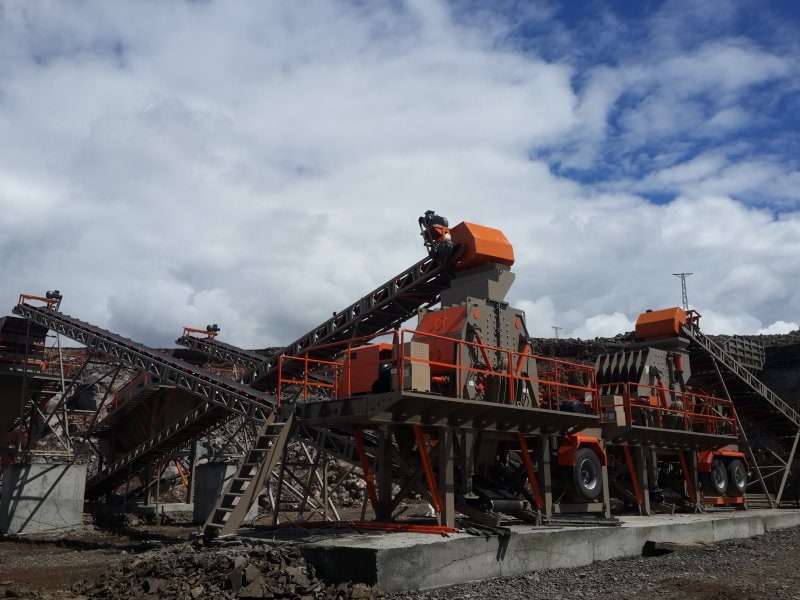

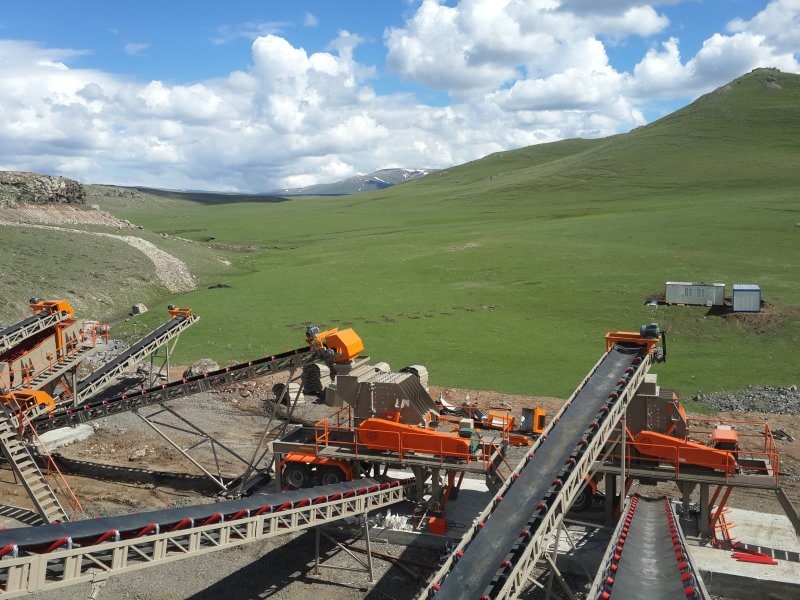

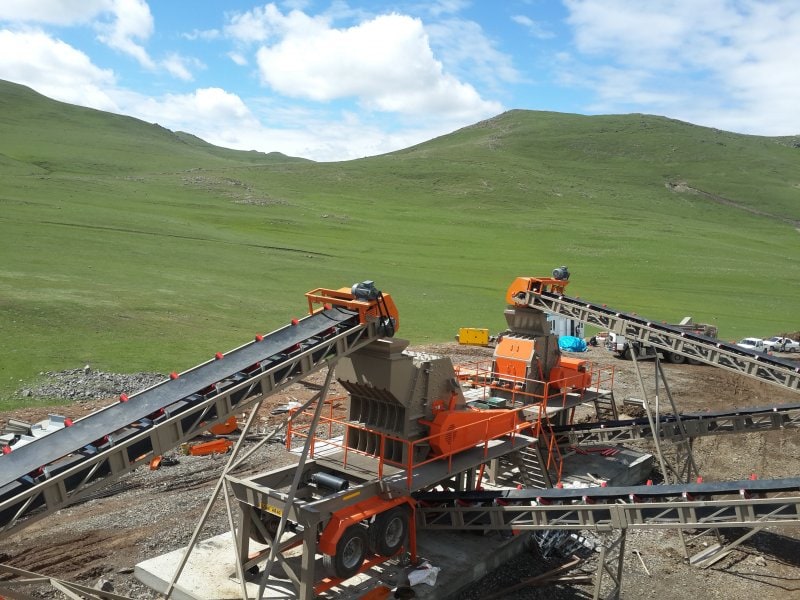

In addition to crushing, tertiary crushers are integrated with a fast and bi-directional screening mechanism, capable of processing large amounts of sifted material in a short time. This dual function makes them an invaluable part of the crushing and screening process, optimizing material handling and final output.
Tertiary crusher systems offer a cost-effective solution for producing fine aggregates, making them accessible to nearly all companies in the construction sector. Their ability to deliver high performance at low operational costs makes them a reliable choice for final-stage crushing and material shaping.
Get a Contact Us| TERTIARY CRUSHERS - TECHNICAL INFORMATION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TİPİ | ROTOR SIZE (mm) | THE BIGGEST SIZE THAT IT CAN TAKE (mm) | CAPACITY (tons/hour) | MOTOR(kW) | WEIGHT (kg) | ROTOR ROTATION (rpm) | |||||
| CTK-15 | 1400x860 | 150 | 80-135 | 160/1500 | 15500 | 700-800 | |||||
| CTK-16 | 1400x1200 | 150 | 120-170 | 250/1500 | 21000 | 700-800 | |||||
