Planetary Type Mixer - Hawk Plant

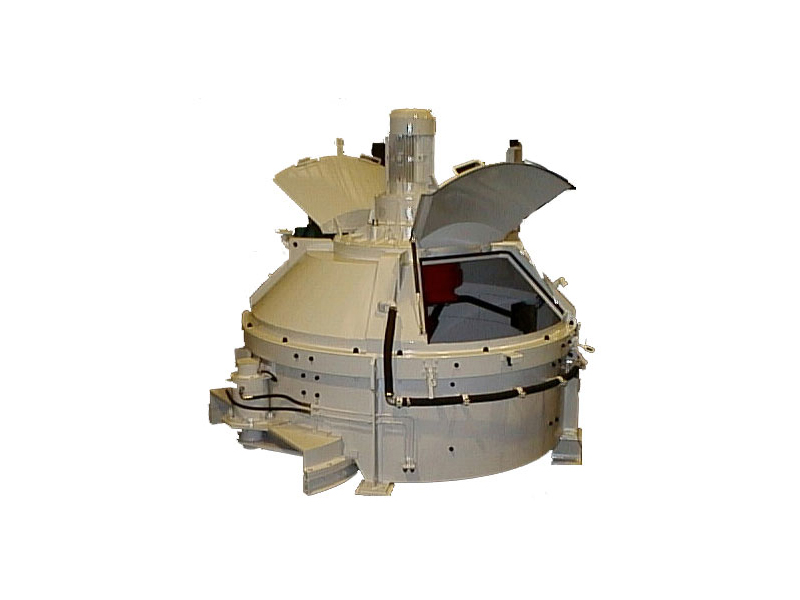

Planetary Type Mixer

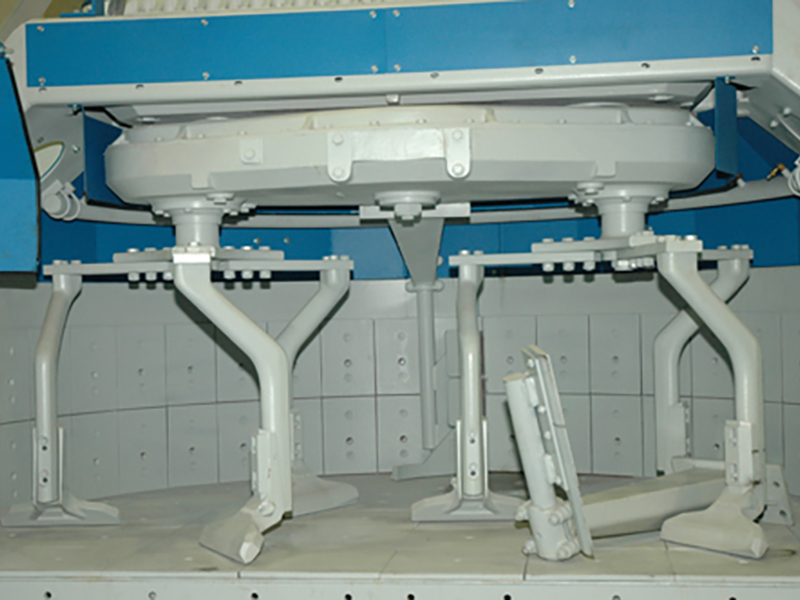

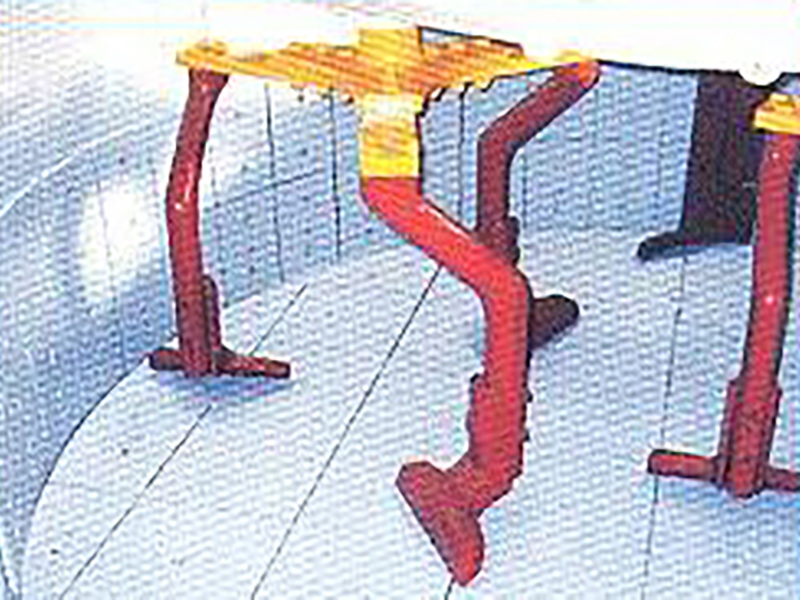

The Planetary Type Concrete Mixer differs from pan-type mixers through its unique stirring mechanism. In this system, the stirrer arms rotate both around themselves and around the mixer’s central axis, ensuring more thorough and even mixing. Additionally, the planetary mixer features small mixer arms on the main spindle that ensure materials are effectively mixed in the inner parts of the drum, providing a highly homogenized concrete mix.

Key Features of Planetary Type Mixers:

  • Superior Homogenization: The dual-rotation mechanism ensures that concrete is mixed uniformly, delivering a high-quality, consistent product.
  • Ideal for Low-Slump Concrete: These mixers are particularly well-suited for plants where low-slump concrete is required, making them the preferred choice for specific applications.
  • Specialized for Block and Paving Stone Production: Planetary mixers are commonly used in block making and paving stone plants, where precise, high-quality concrete mixes are crucial.

With their advanced mixing action, planetary mixers ensure optimal concrete quality, making them indispensable for projects that require specialized concrete mixes.

Get a Contact Us

Planetary Type Mixer Technical Informations

MİXER TYPE DRY MIXING VOLUME (m³) WET CONCRETE MIXING (m³) MOTOR (kW)
HP 250 375 250 7,5
HP 500 750 500 18,5
HP 1000 1500 1000 45
HP 1500 2250 1500 2X30
HP 2000 3000 2000 2X45
