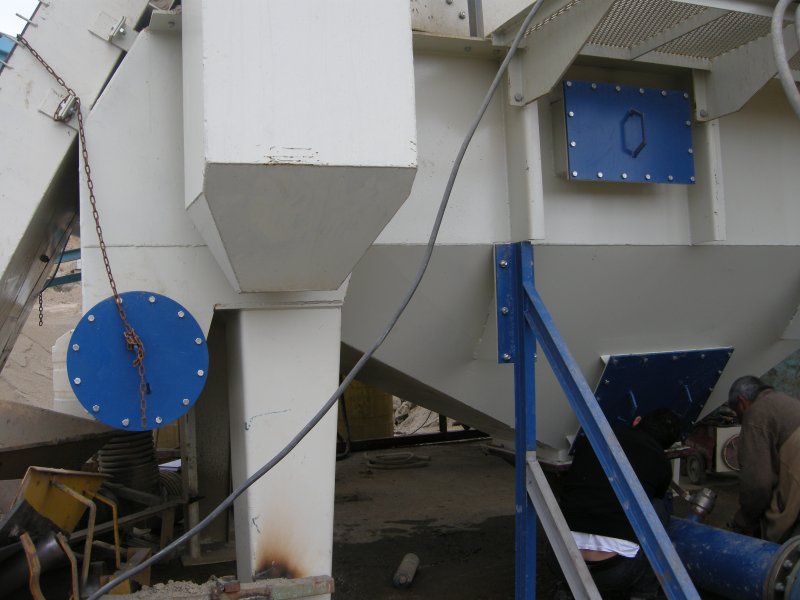

Dewatering screeners are designed to effectively clean and wash materials by separating fine particles as small as 55-60 microns from other substances. Although traditional washing processes often involve high water consumption, these screeners are equipped with efficient water recovery systems, significantly reducing water usage and enhancing sustainability.

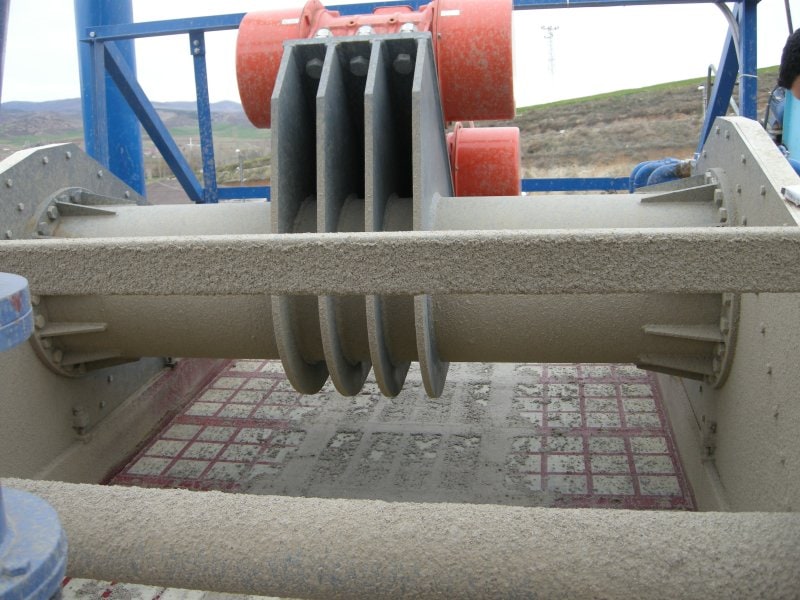

To ensure durability, the contact surfaces of dewatering screeners are lined with abrasion-resistant rubber, and the use of polyurethane sieve wires further boosts wear resistance. This makes them ideal for demanding applications where longevity and consistent performance are critical. While the initial investment for these screeners may be higher, they offer low operating costs, simple operation, and reliable, trouble-free performance, making them a cost-effective solution in the long run.
Get a Contact UsDEWATERING SCREENER AND CYCLONE - TECHNICAL INFORMATION | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
MODEL | MENTION SIZE (mm x mm) |
SCREENING AREA (m²) |
SCREENING SLOPE (degree) |
MOTOR (kw / rpm) |
PUMP (inch) |
PUMP MOTOR (kw / rpm) |
|||||
CSE-1635 | 1600 x 3500 | 5.6 m² | 8 | 2 x 7.5 - 1000 | 8" | 55 - 1500 | |||||
CSE-1650 | 1600 x 5000 | 8 m² | 8 | 2 x 9.2 - 1000 | 8" | 55 - 1500 |
