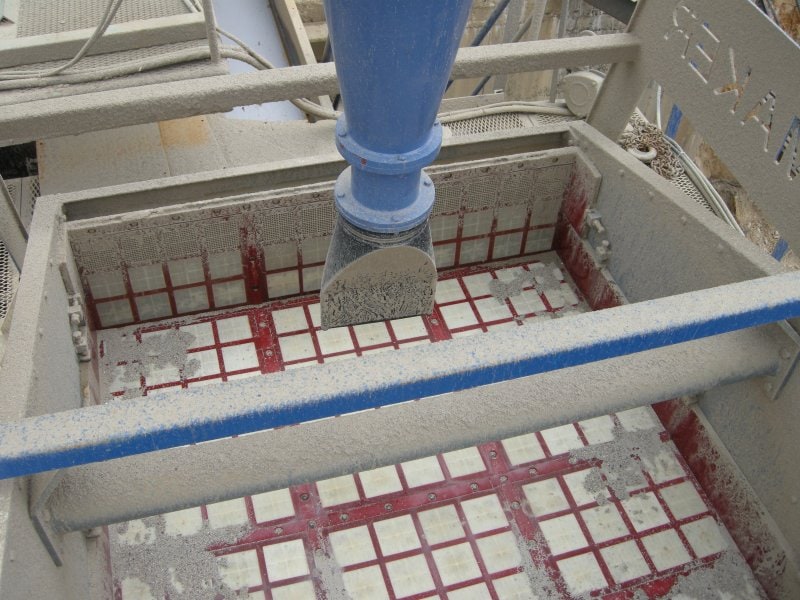

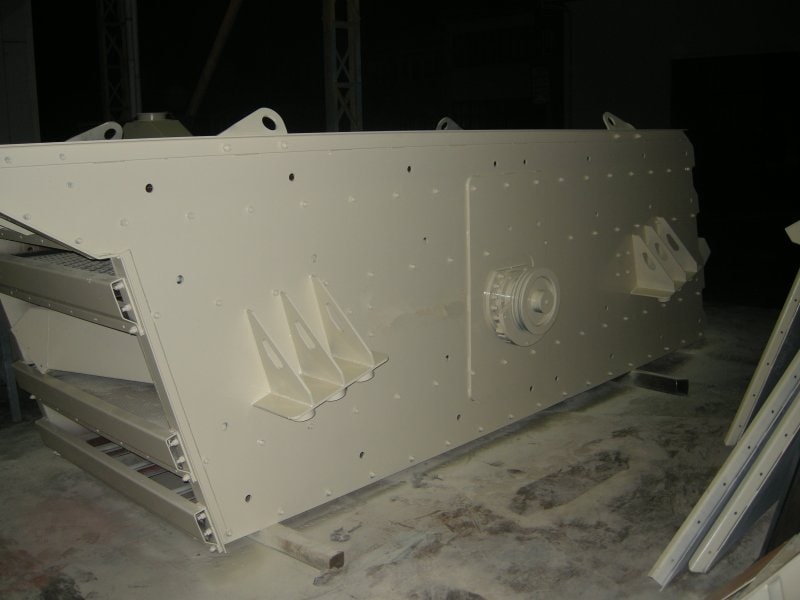

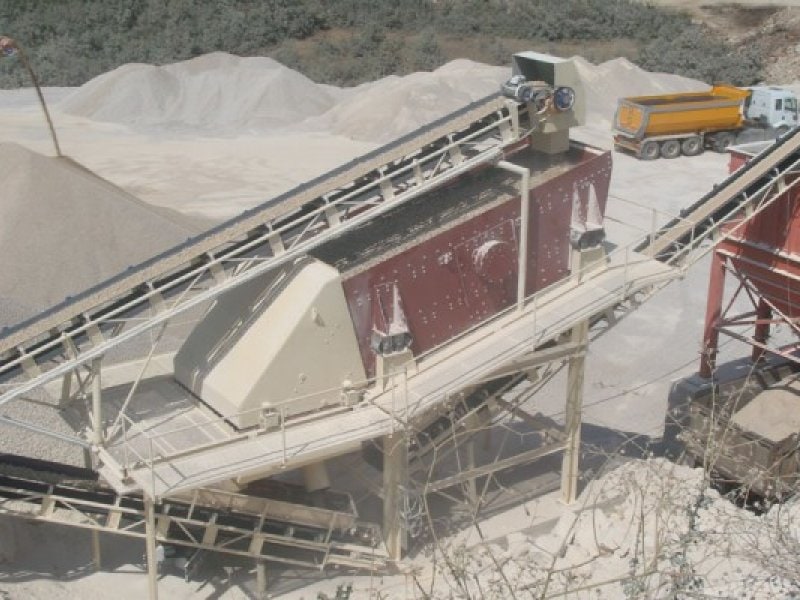

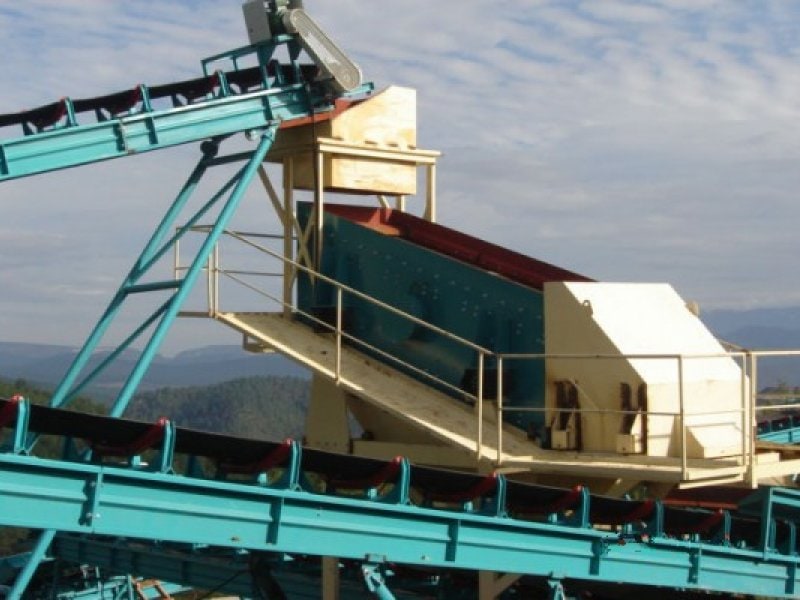

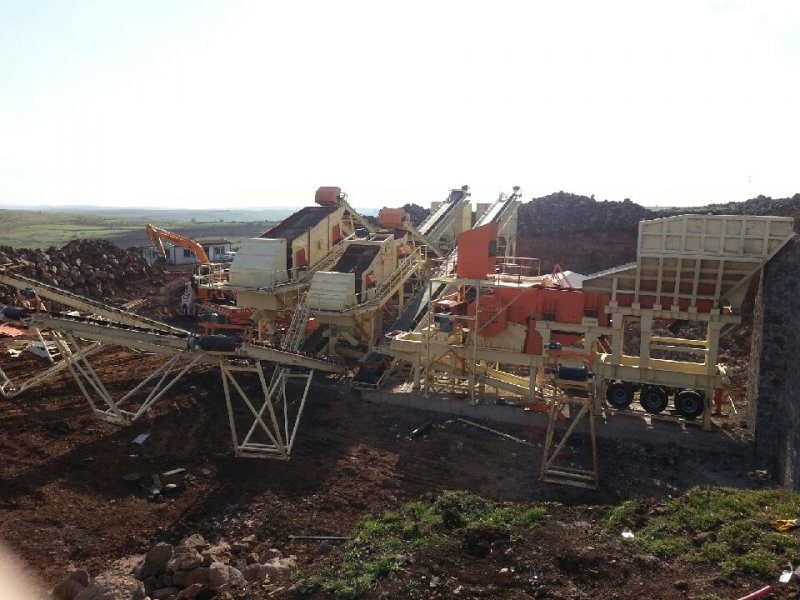

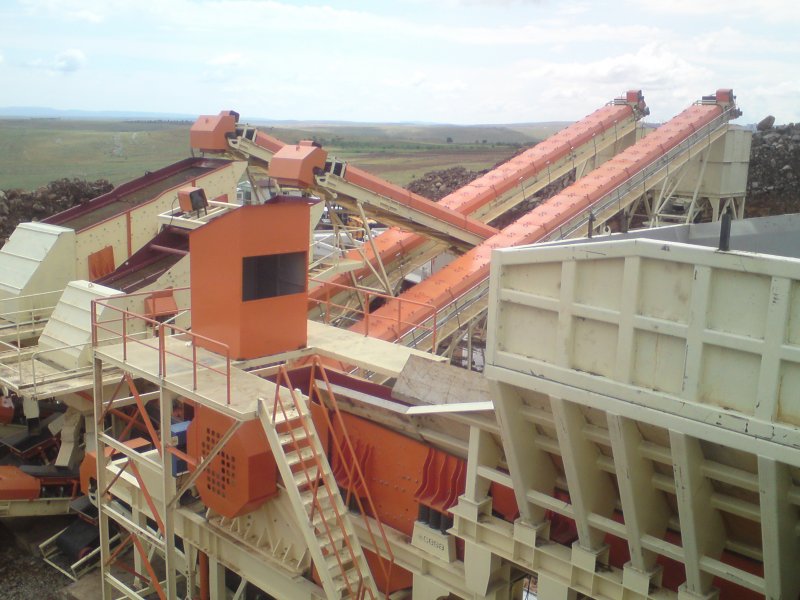

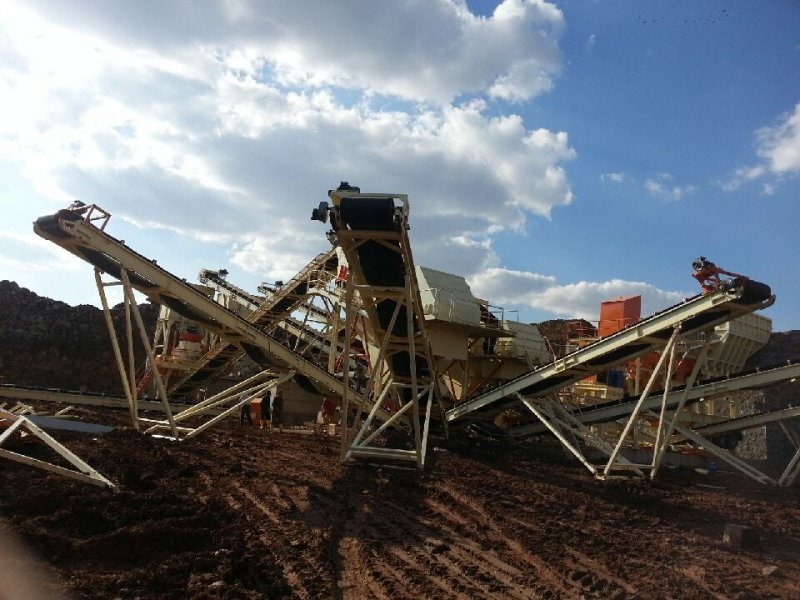

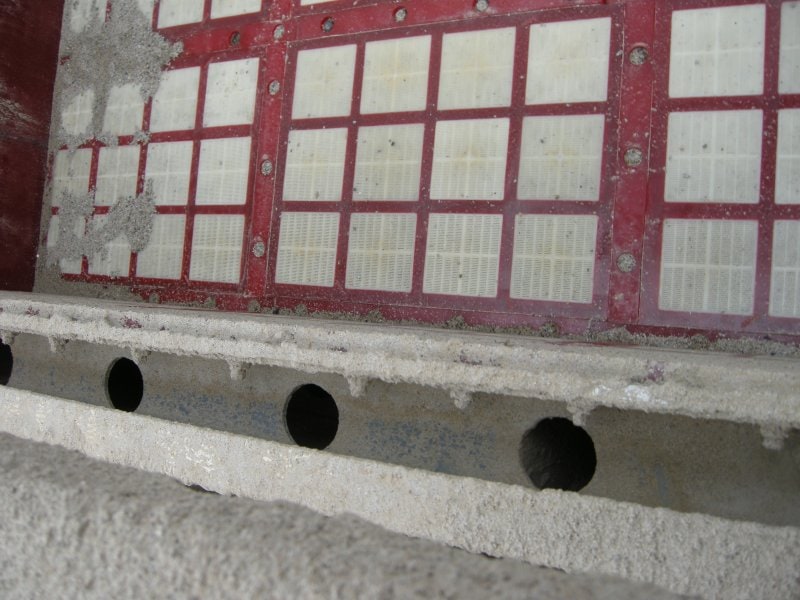

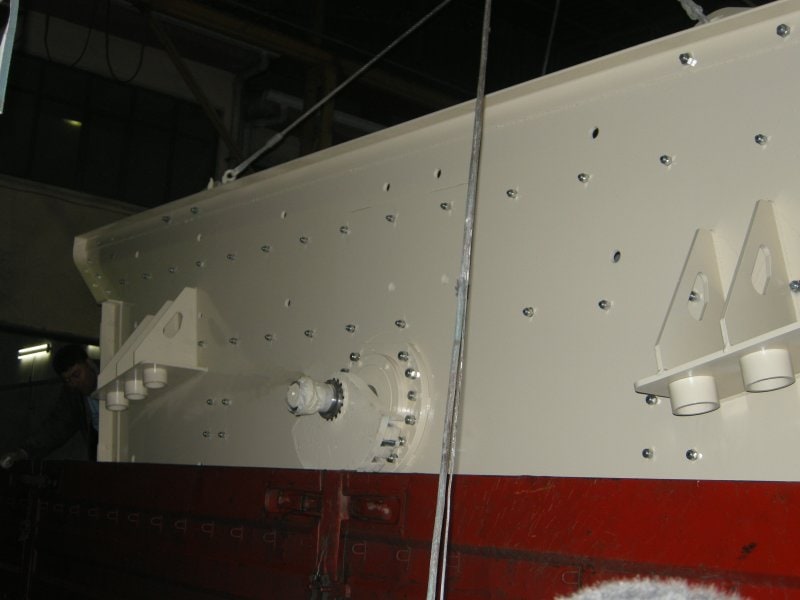

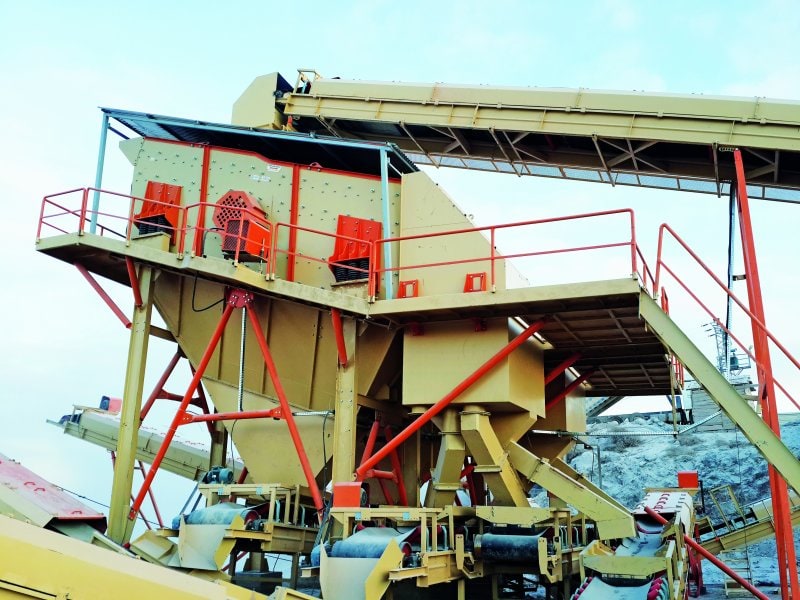

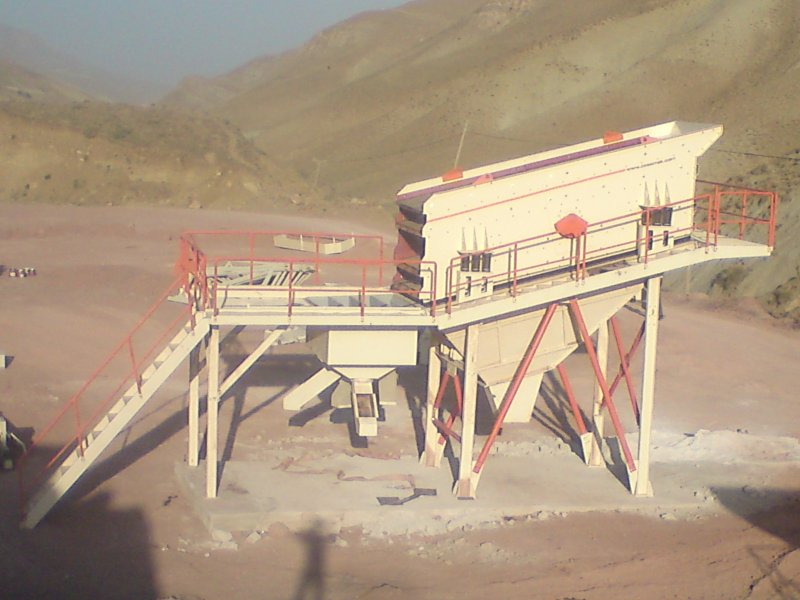

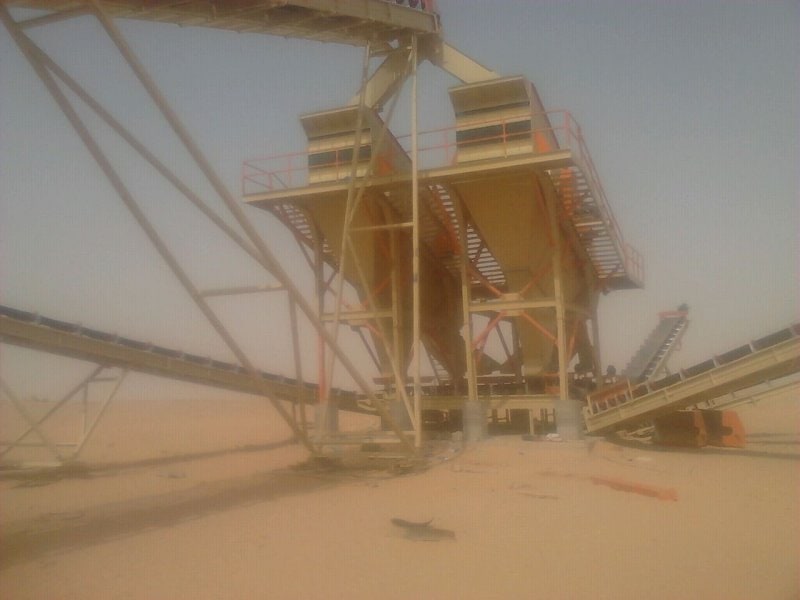

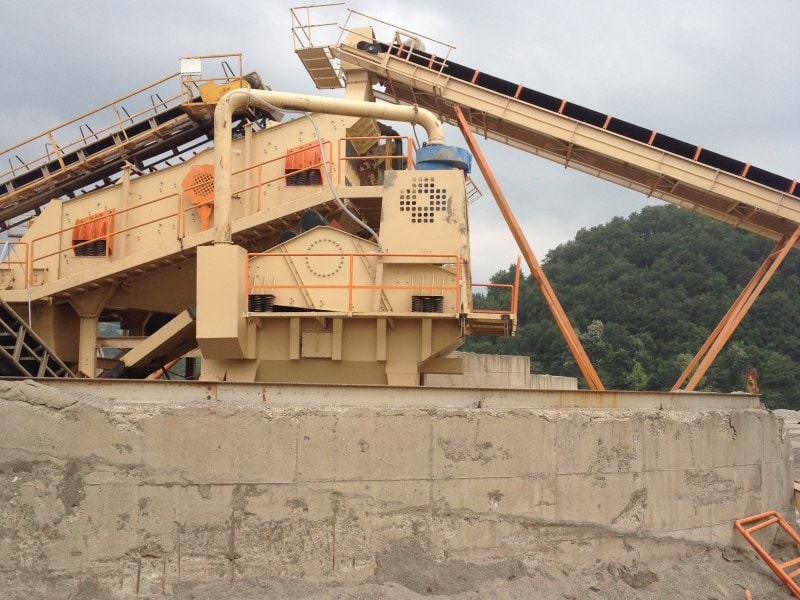

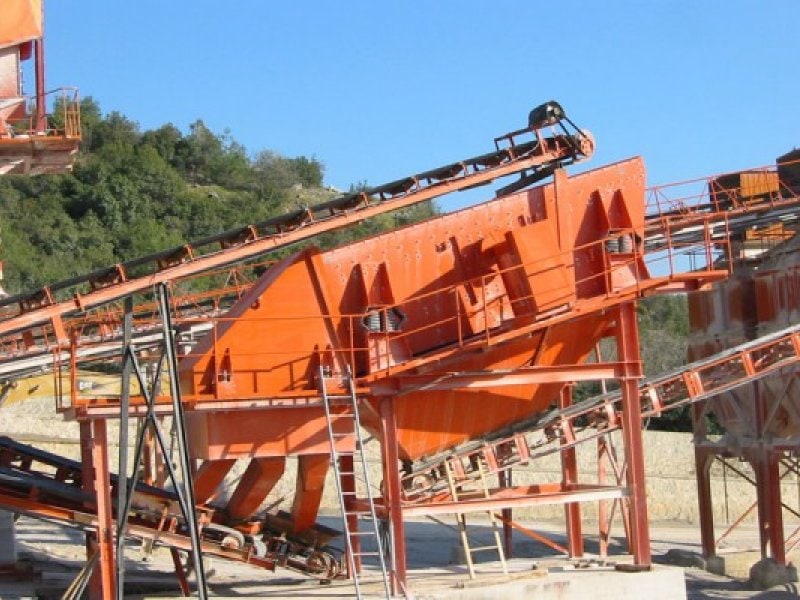

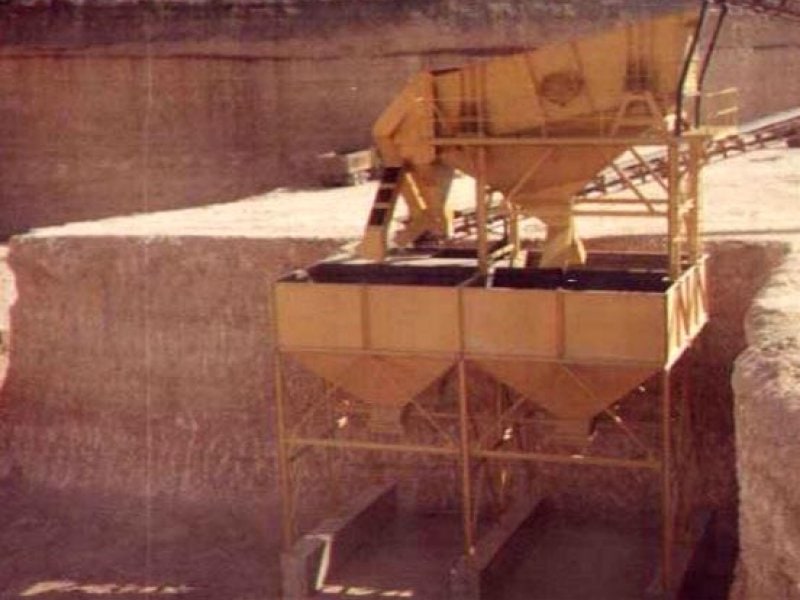

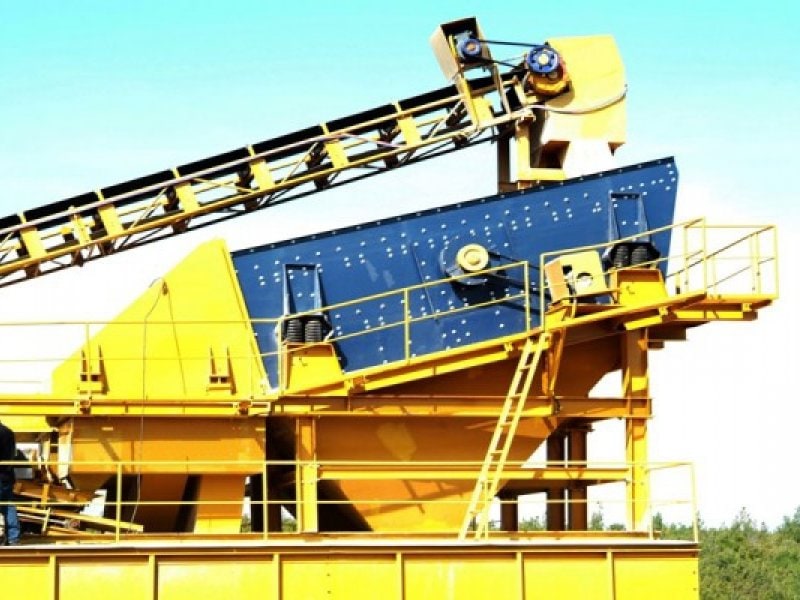

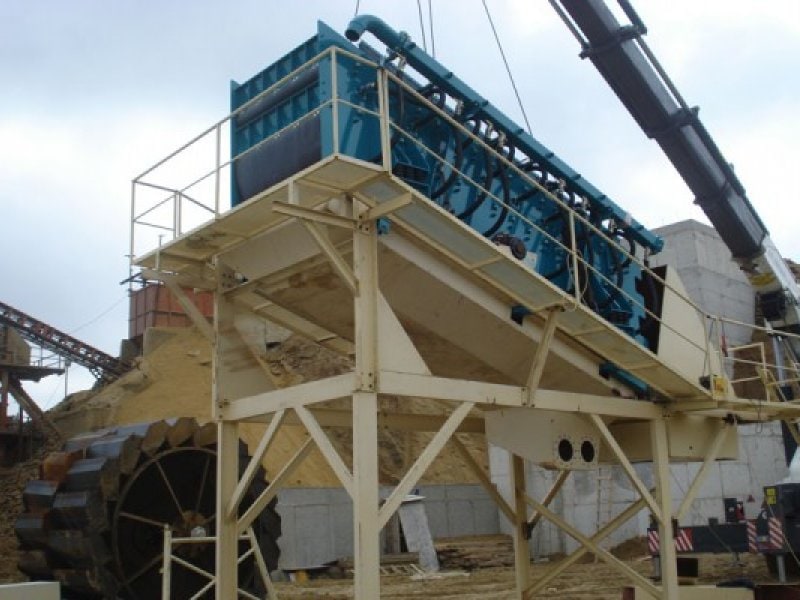

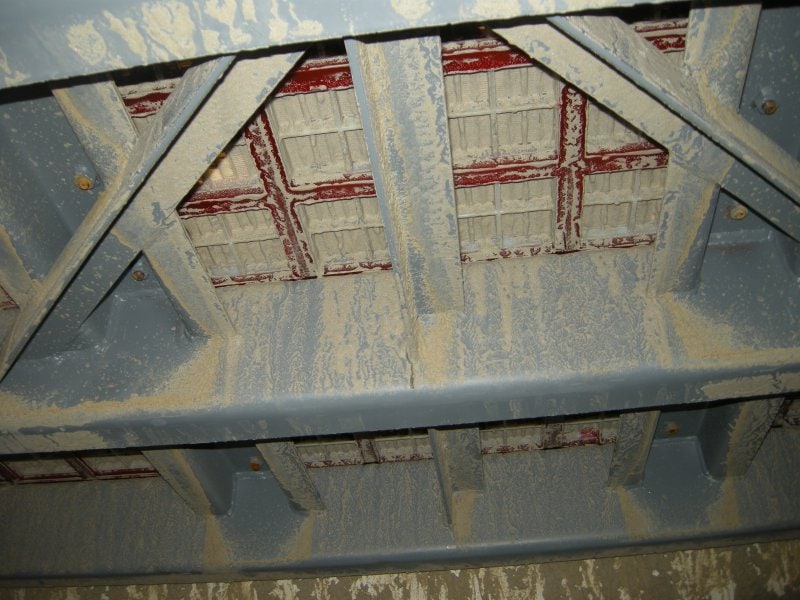

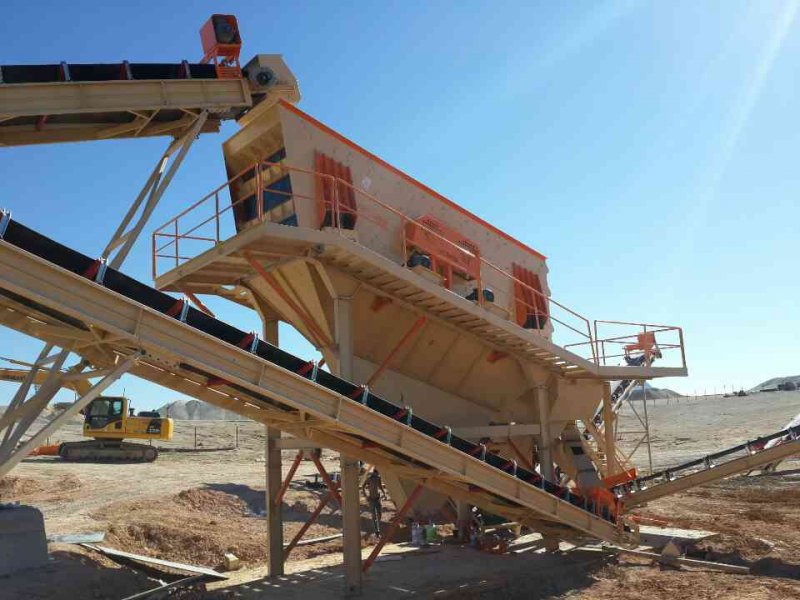

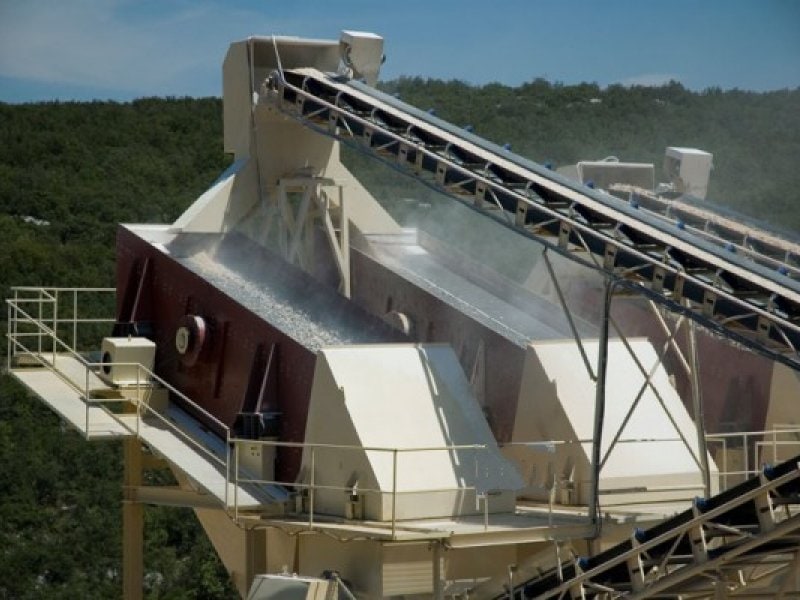

Vibrating screens are essential for separating broken materials into desired sizes in quarry and creek operations. Designed for ease of use and low operating costs, these screens feature bolted constructions instead of welded bodies, which enhances durability and simplifies maintenance. Standard features include easily replaceable mesh, pre-grooves to guide material flow, and stone-box pre-grooves on wear-prone surfaces to prevent damage, ensuring longevity and smooth operation.

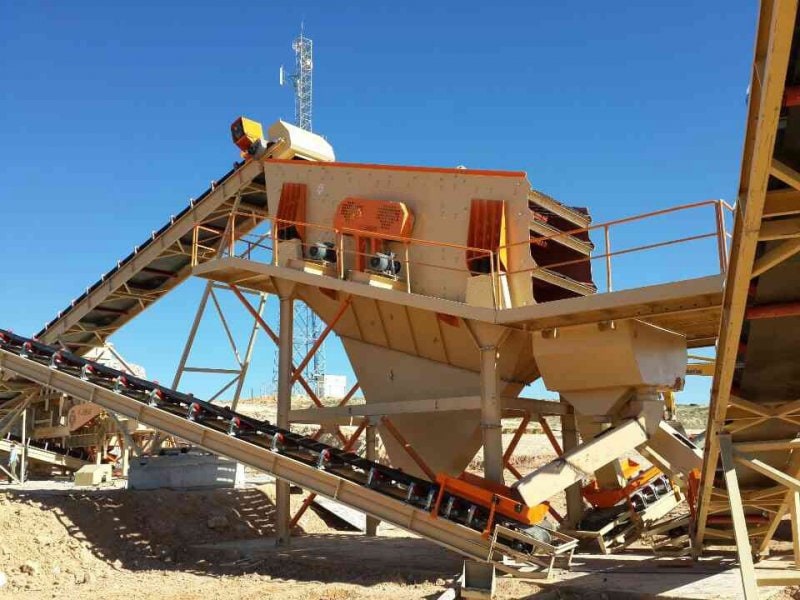

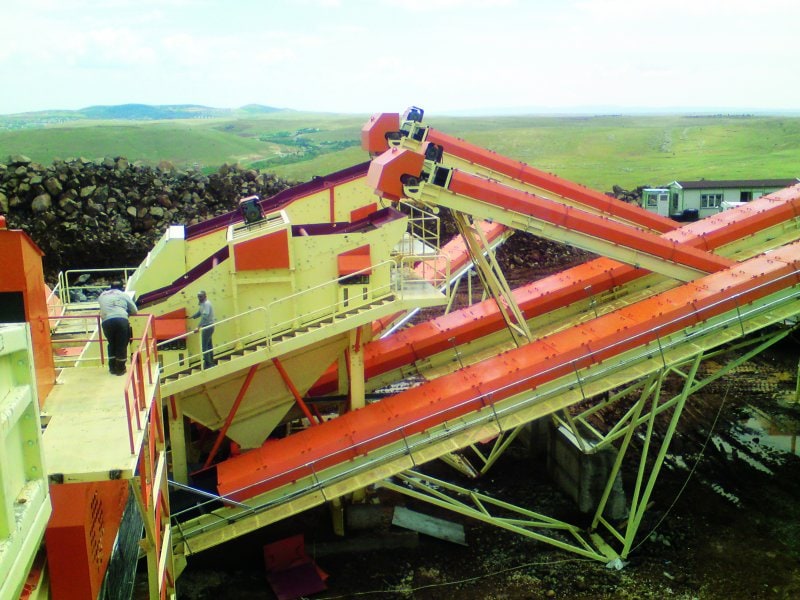

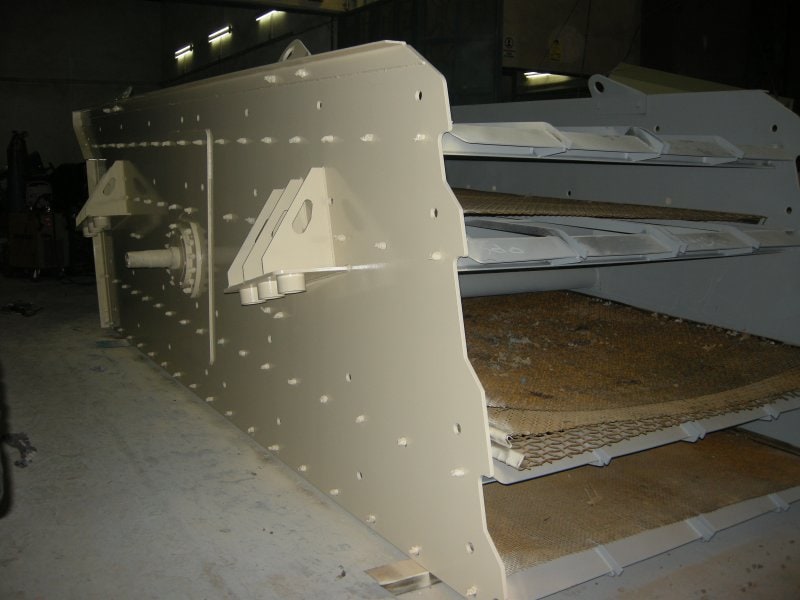

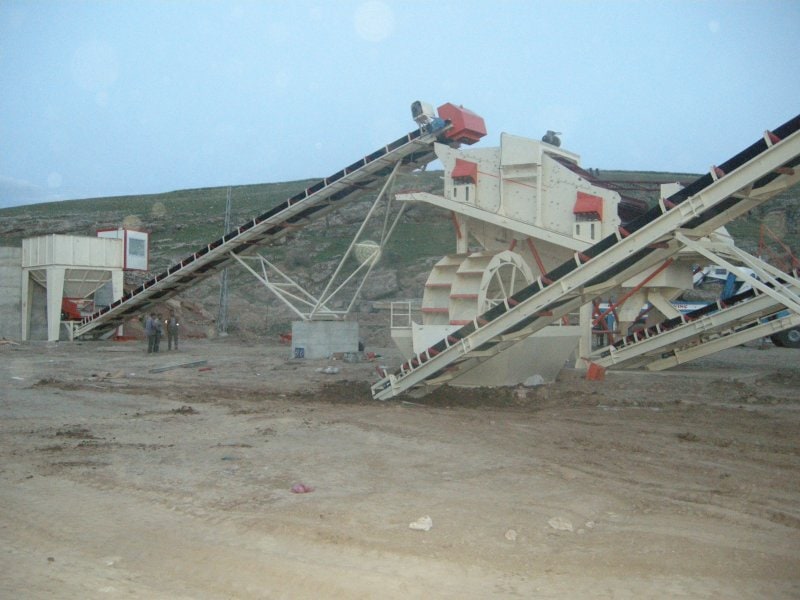

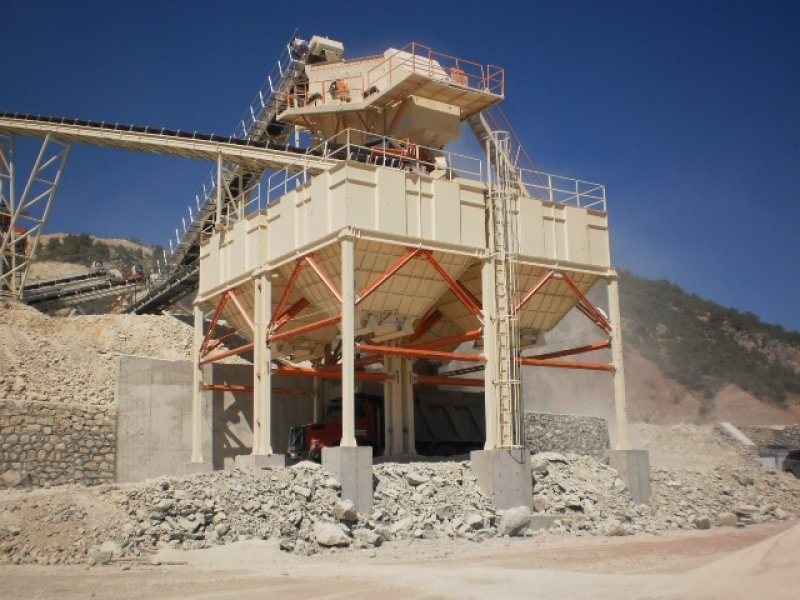

These work machines efficiently sort and separate incoming materials by size, and can be customized in 2, 3, or 4-deck configurations, allowing for the simultaneous screening of multiple materials. Vibrating screens are crucial in various applications, from sorting different-sized substances to optimizing crushing and screening plant operations.

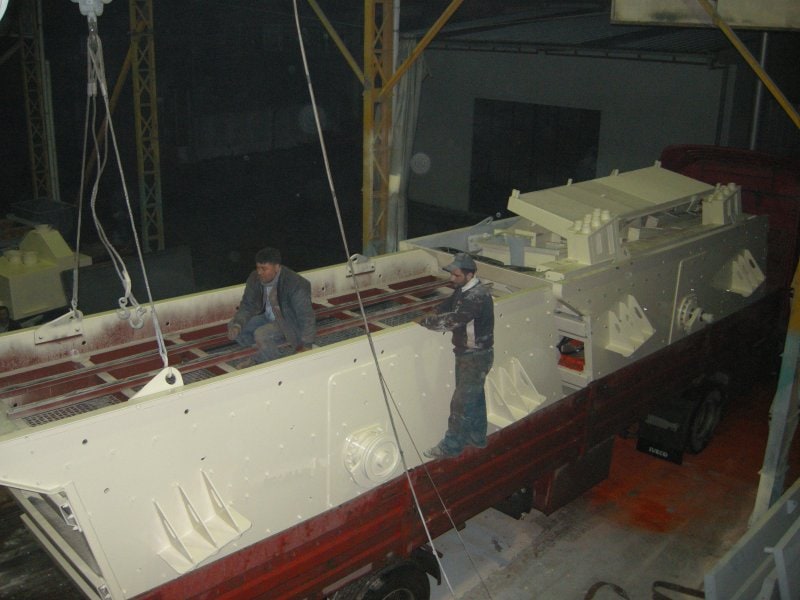

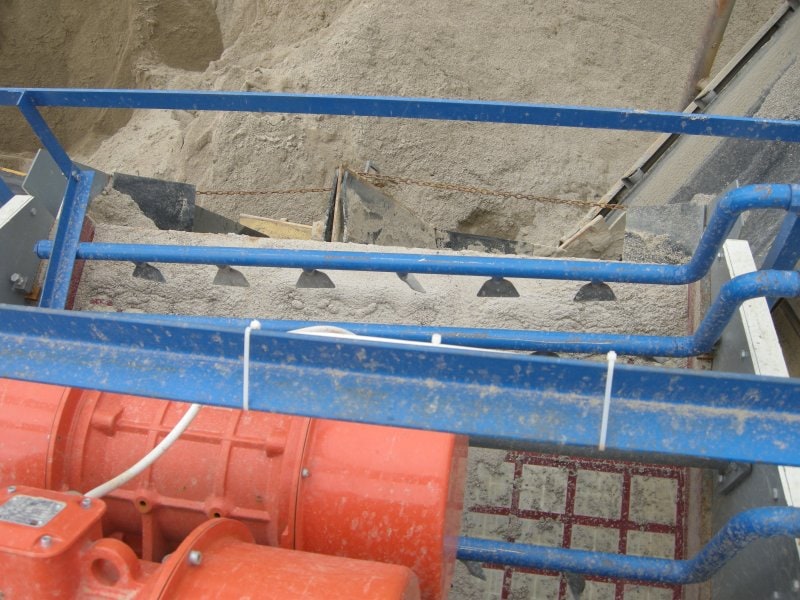

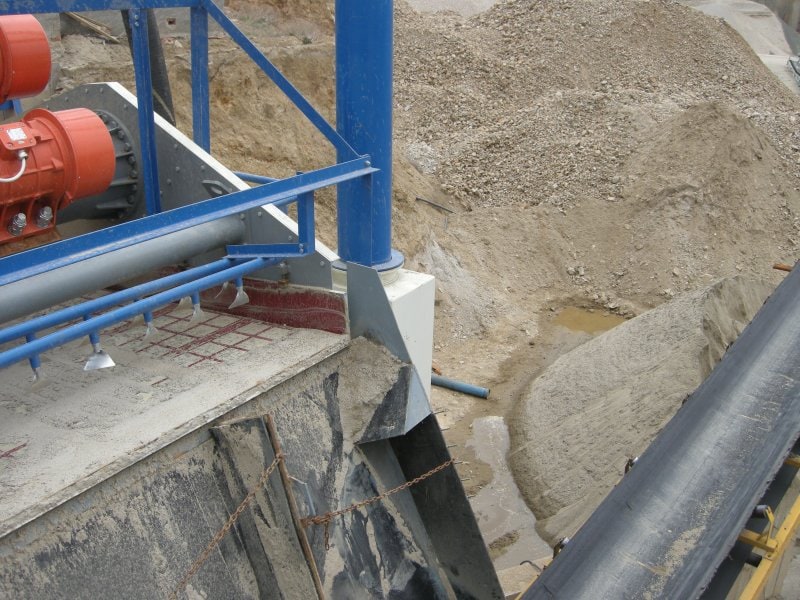

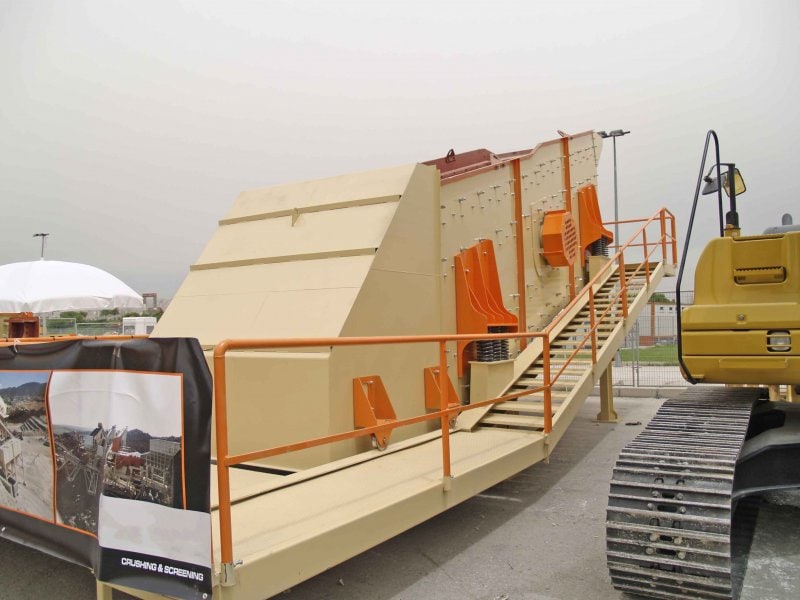

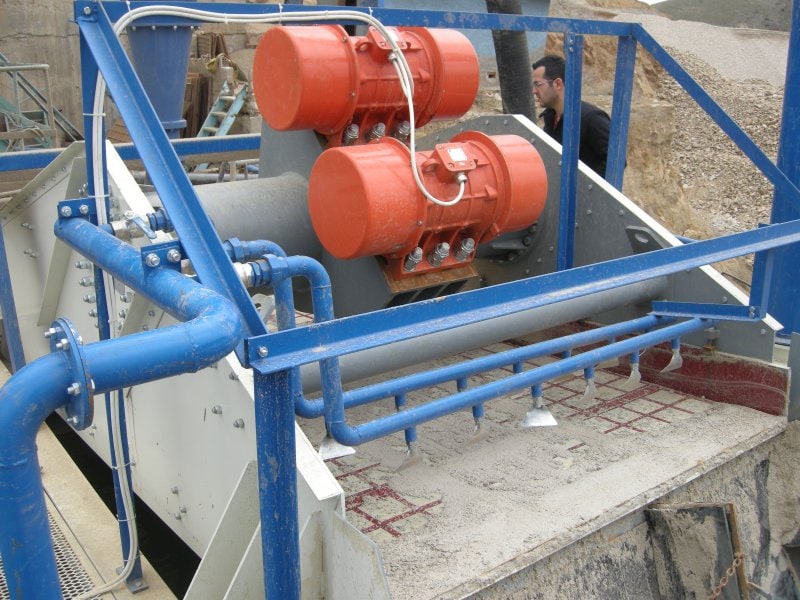

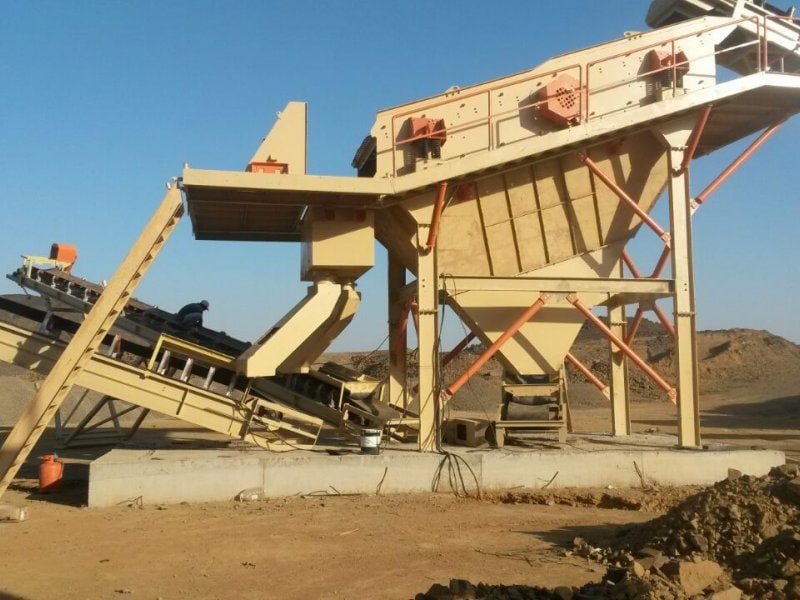

Our vibrating screeners are designed with ample spacing for easy access during maintenance and to quickly address any issues with screener wires. Each unit includes a vibration mechanism, motor, body, and spring suspension, all mounted on a single chassis. This design simplifies transportation, allowing the entire unit to be moved with a single truck when relocation is needed.
Get a Contact Us| TECHNICAL INFORMATION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | CVS-1650 | CVS-2050 | CVS-2060 | CVS-2460 | |||||||
| SCREENER SIZE (mm)) | 1600x500 | 2000x5000 | 2000x6000 | 2400x6000 | |||||||
| NUMBER OF FLATS | 2-3-4 | 2-3-4 | 2-3-4 | 3-4 | |||||||
| MOTOR POWER (kW) | 15 | 22 | 30 | 2x22 | |||||||
| VIBRATION ROTATION (rpm) | 1000 | 1000 | 1000 | 1000 | |||||||
| WEIGHT (kg) | 14000 | 17000 | 19000 | 21000 | |||||||
