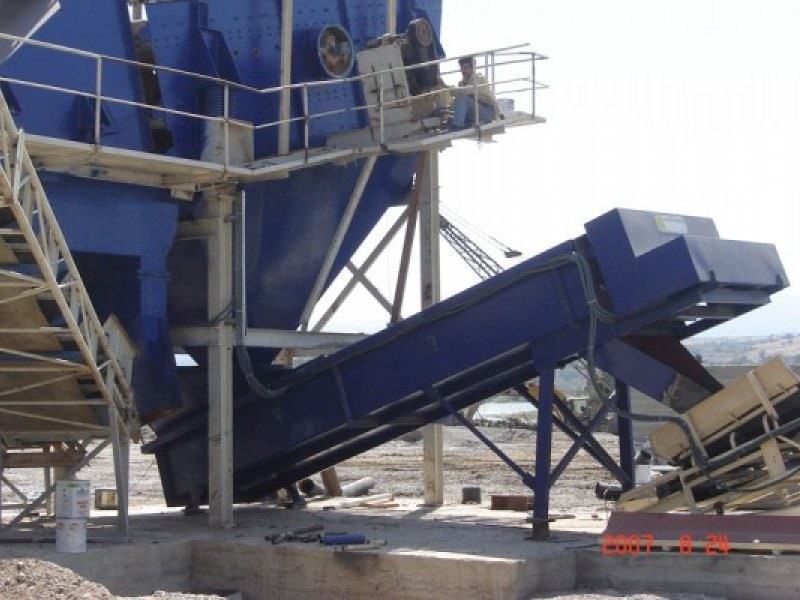

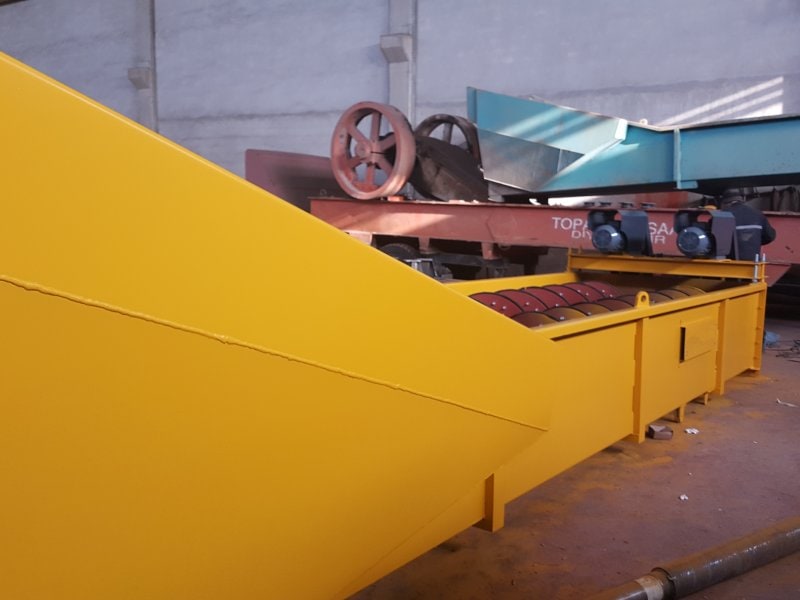

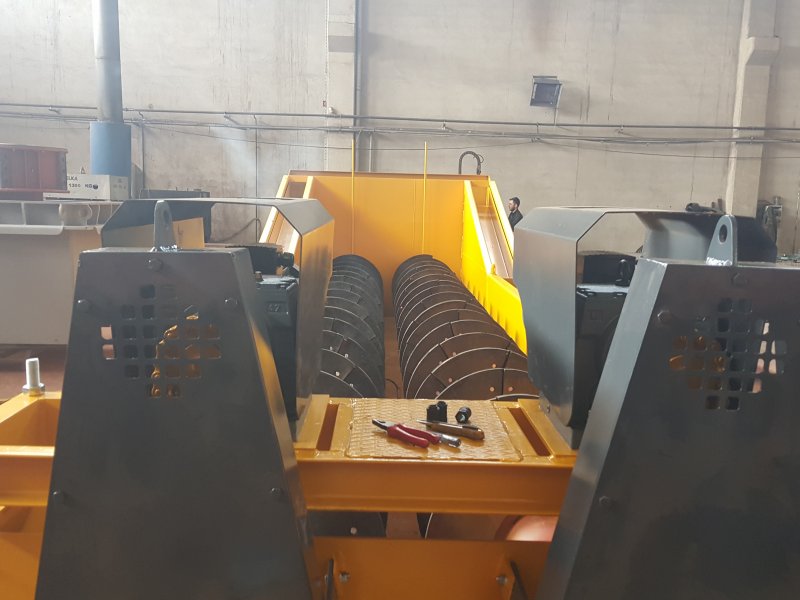

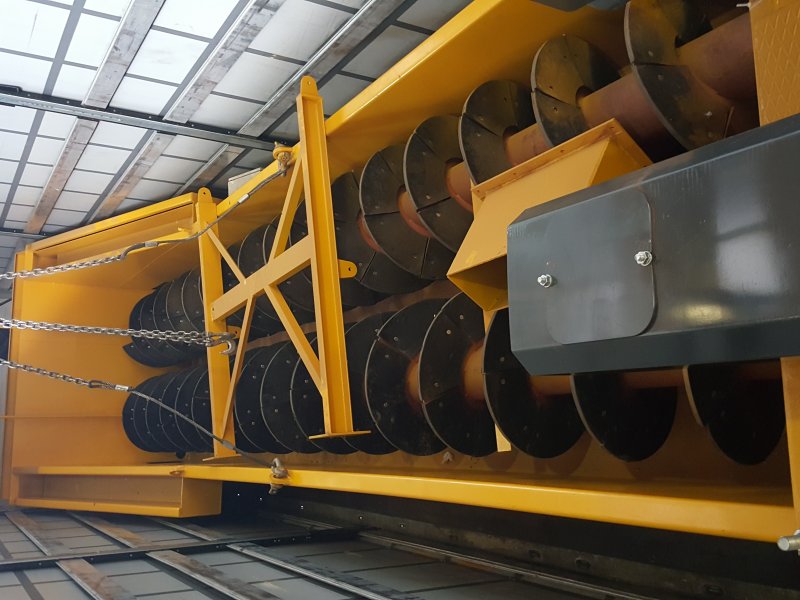

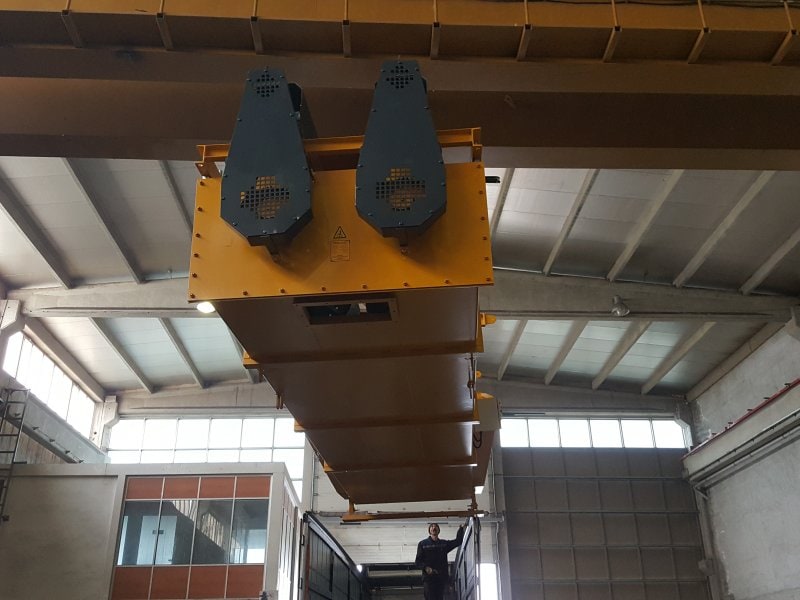

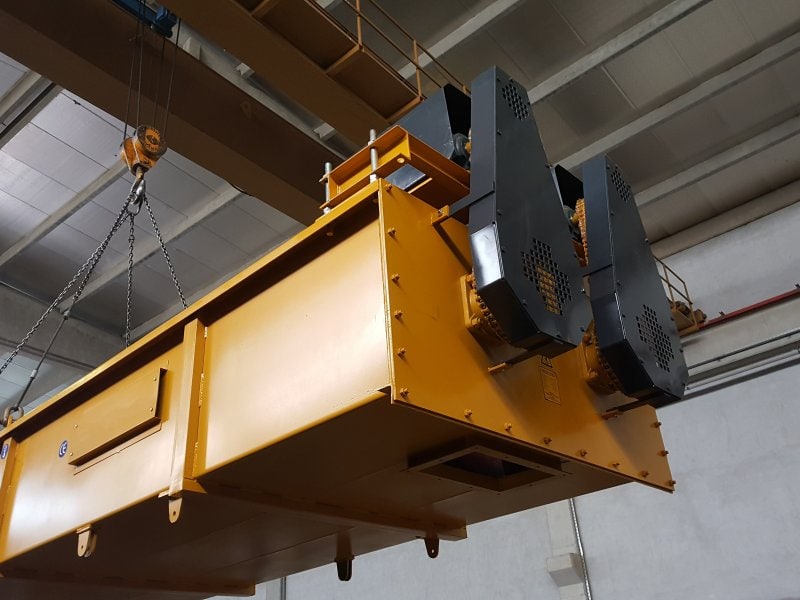

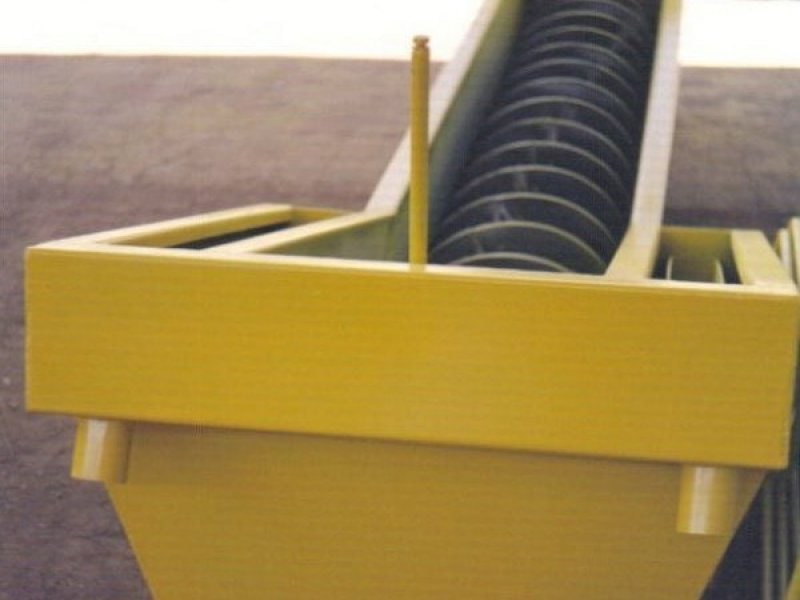

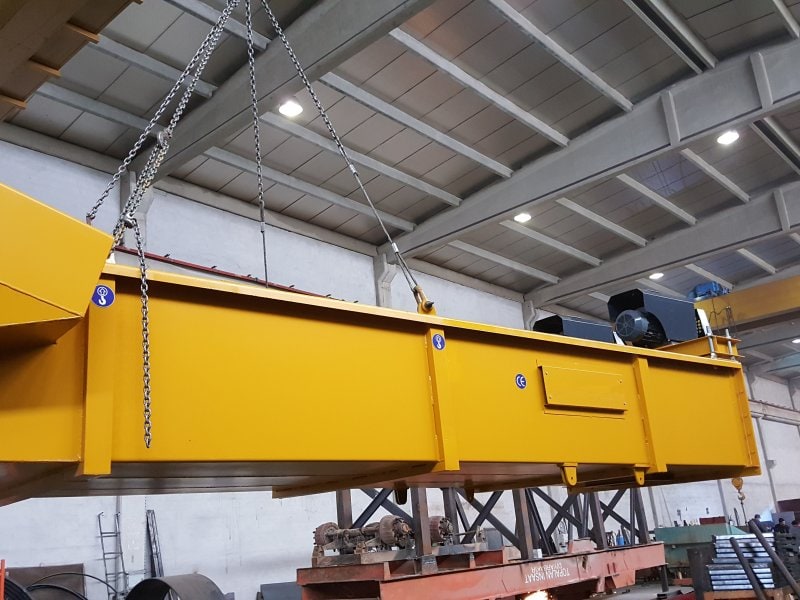

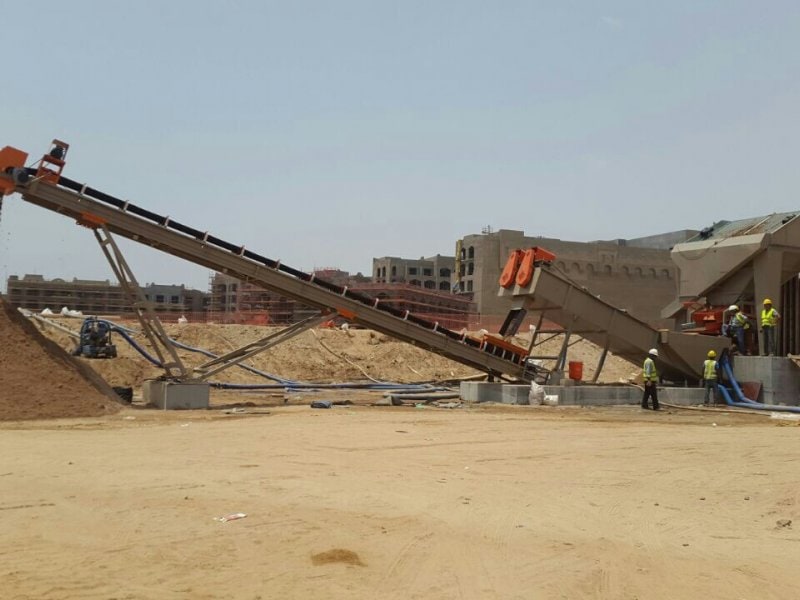

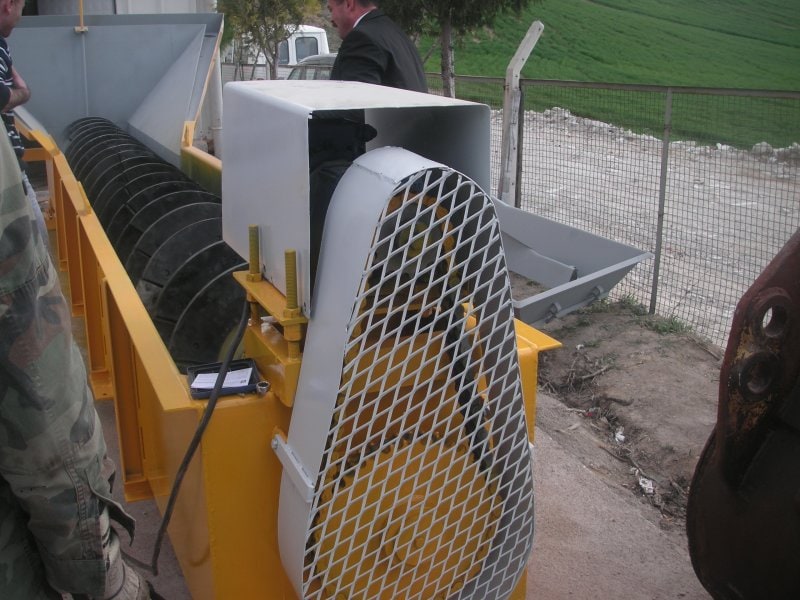

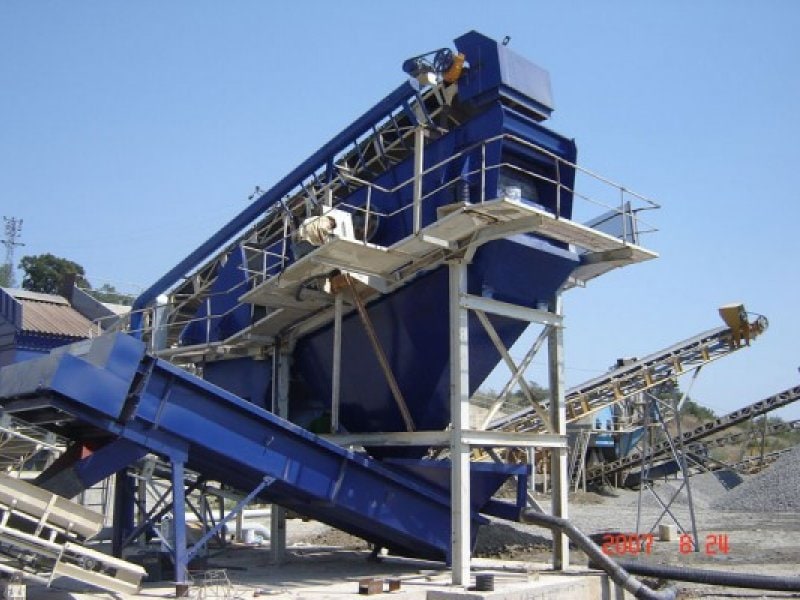

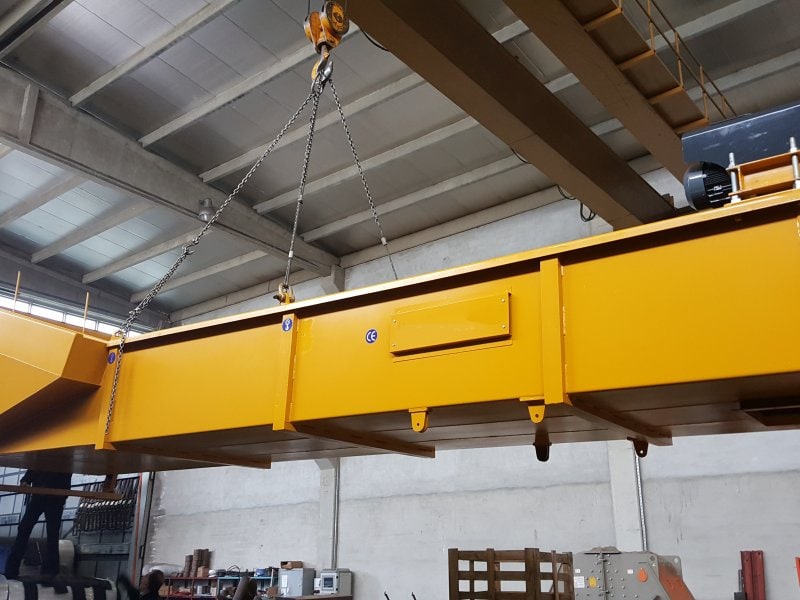

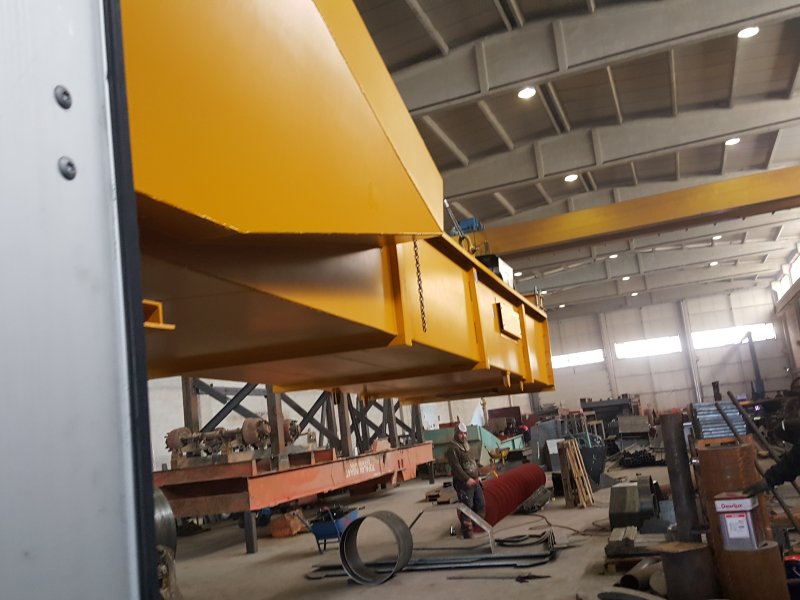

Washer screws, also known as spiral scrubbers, are essential for removing impurities from 0-5 mm crushed stones obtained from stream beds, ensuring the production of clean, washed materials. These scrubbers are designed to retain sand during the washing process, efficiently separating it from water. To accommodate different capacity needs, washer screws are available in both single and double spiral configurations.

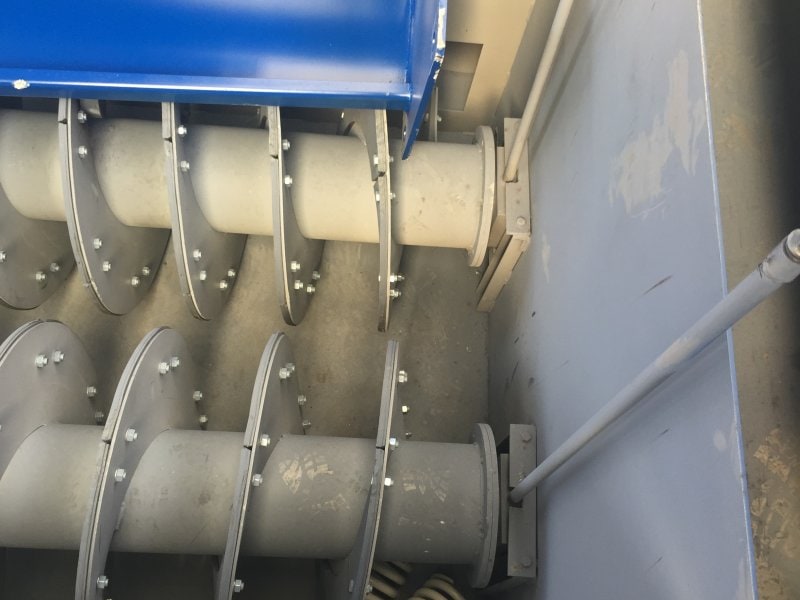

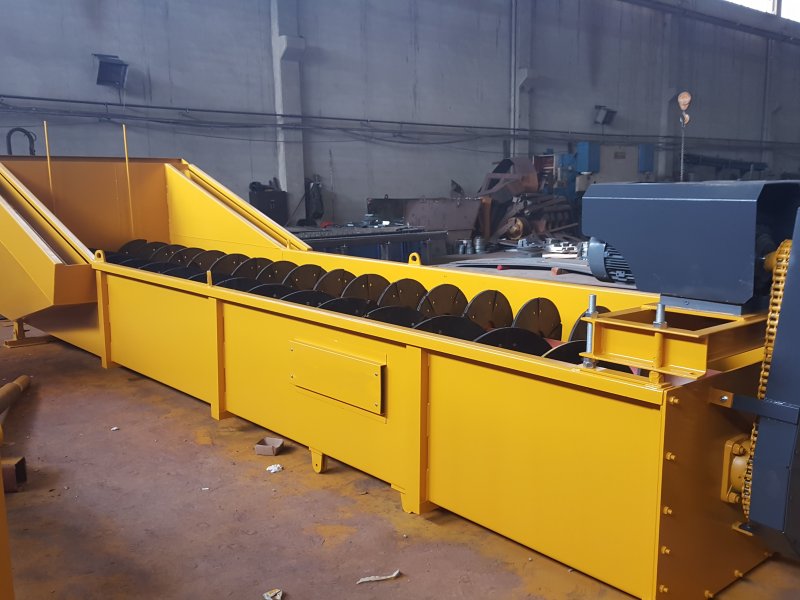

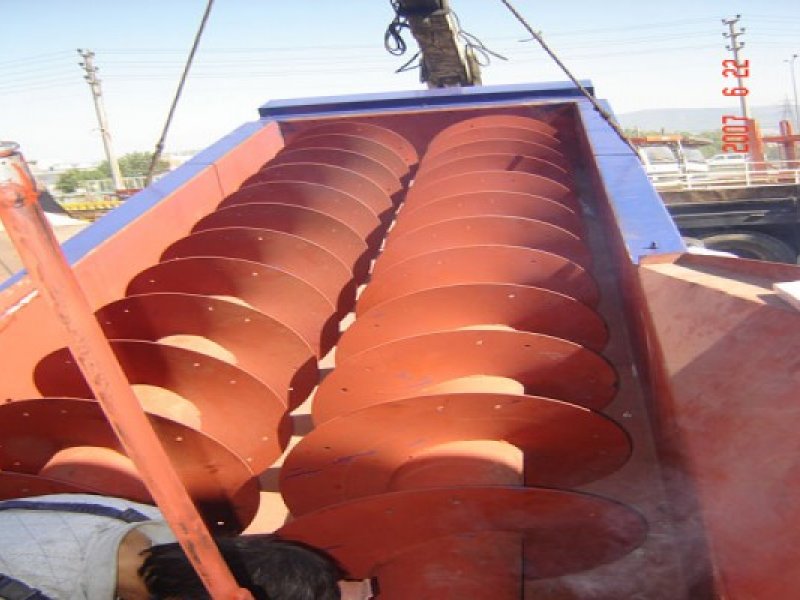

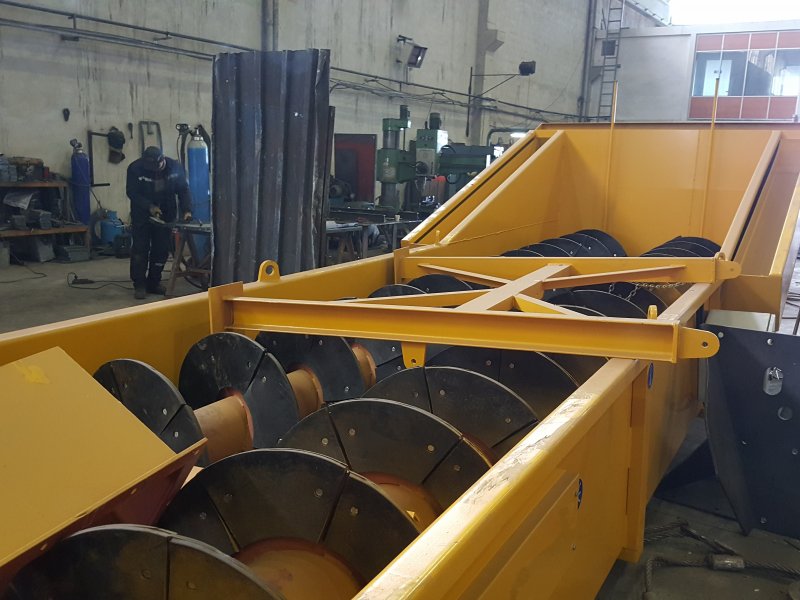

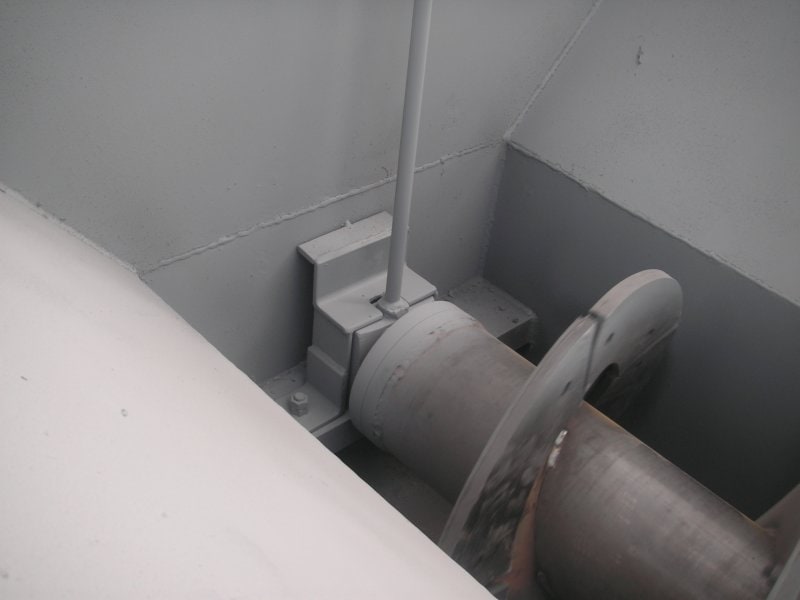

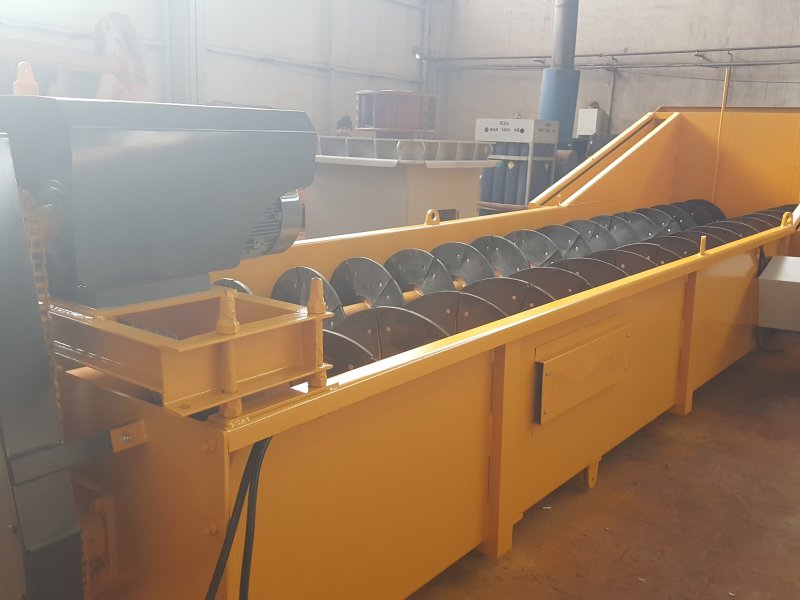

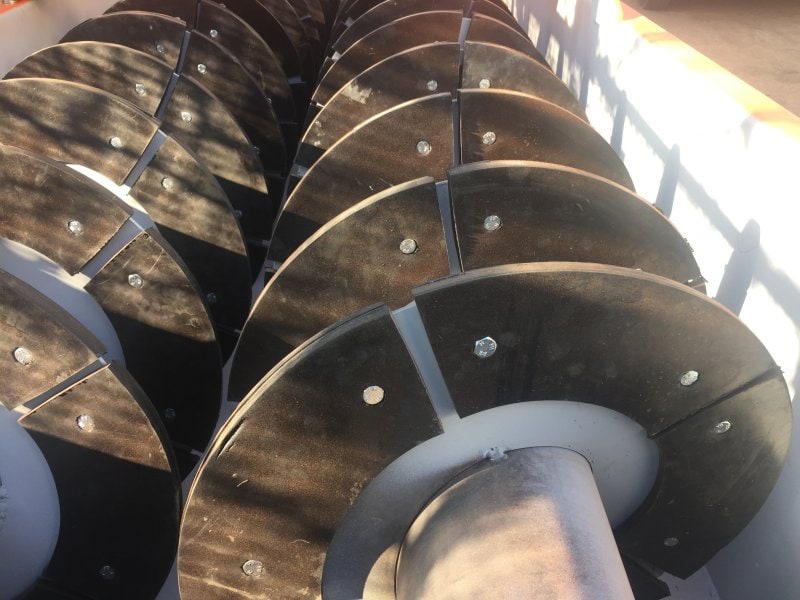

Once the washed material settles at the bottom, it is lifted by the spiral helix blades and discharged through designated grooves, while water and sludge are directed out through separate channels. The spiral blades, crafted from high-quality steel sheets, are coated with removable and replaceable rubber linings that prevent wear and extend the lifespan of the equipment, making maintenance straightforward.
Built to handle high-capacity operations, washer screws are highly effective in minimizing leakage during the washing of heavily contaminated minerals that require intensive cleaning.
Get a Contact Us| WASHER SCREW - TECHNICAL INFORMATION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TYPE | MODEL | MOTOR (kW) | INPUT CAPACITY (m3/hour) | HELIX CYCLE (rpm) | WATER NEEDS (m3/h) | WEIGHT (kg) | |||||
| 0-3 mm | 0-7 mm | ||||||||||
| 400x4000 | CY24 | 5,5 | 16 | 27 | 24 | 15-30 | 2300 | ||||
| 500x5000 | CY25 | 7,5 | 25 | 42 | 24 | 25-45 | 2800 | ||||
| 600x6000 | CY26 | 7,5 | 35 | 55 | 20 | 35-55 | 5200 | ||||
| 800x8000 | CY27 | 11 | 45 | 70 | 20 | 45-65 | 6250 | ||||
